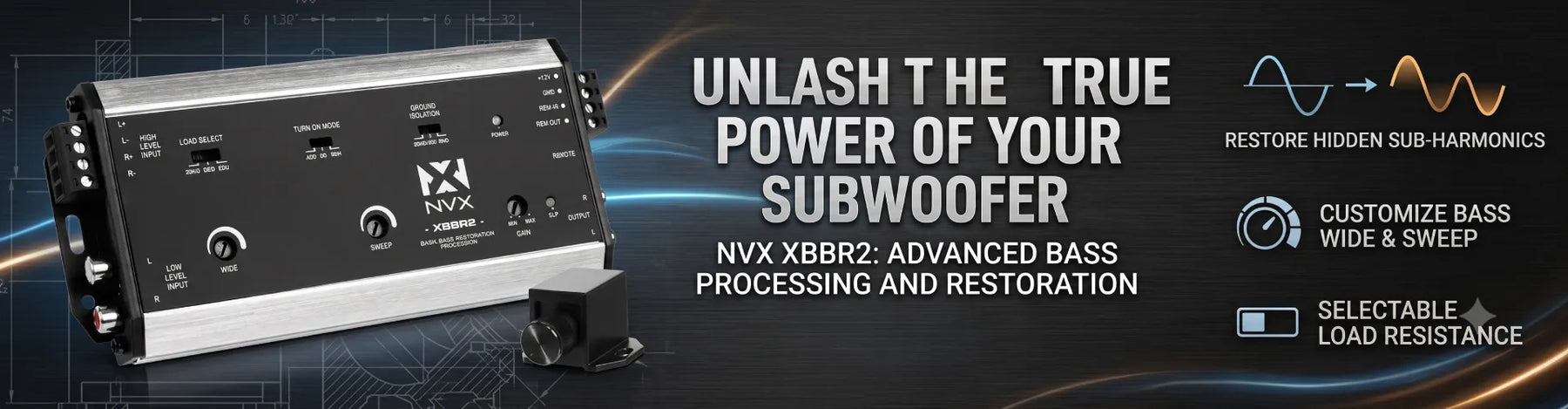

NVX XBBR2 BassTracer Digital Bass Restoration Processor Buyer’s Guide

The NVX XBBR2 BassTracer is a digital bass restoration processor designed to reconstruct the low-frequency sub-bass information that is often stripped away by modern music compression or factory radio volume-protection circuits.

The XBBR2 analyzes upper-harmonic frequencies and synthetically recreates a clean, low-end signal down to the 30 Hz to 50 Hz range, making it an essential tool for enthusiasts who want deep, physical bass from digital streaming or OEM (Original Equipment Manufacturer) source units.

Beyond simple bass restoration, the unit also serves as a high-output line driver. It boosts the preamp signal up to a massive 10V root-mean-square (RMS), which helps lower the noise floor and prevents your aftermarket amplifiers from clipping.

Why Do Modern Audio Sources and Factory Radios Lack Deep Bass?

Digital streaming platforms and compressed audio formats like MP3s intentionally compress audio files to save bandwidth, which often results in the loss of low-frequency sub-bass dynamics. When these tracks are played back, the lowest octaves of the music can feel thin, hollow, or completely absent because the sub-bass data was discarded during the digital compression process.

Modern factory head units also use internal programming to protect cheap stock speakers from damage. As you turn the volume up, the factory radio automatically reduces the low-frequency output, a phenomenon known as factory bass roll-off. When you add an aftermarket subwoofer and amplifier to a factory system, this built-in protection starves your new equipment of the low-frequency signal it needs to perform.

A digital bass processor solves both of these issues by intercepting the compromised audio signal, recreating the missing bass notes, and sending a restored, full-bandwidth signal to your amplifiers.

How the NVX XBBR2 Reconstructs Sub-Bass Frequencies

The NVX XBBR2 BassTracer uses a proprietary digital circuit that detects the higher-frequency harmonics of bass instruments, such as kick drums or bass guitars, and uses that data to reproduce the original fundamental low-frequency wave. This process allows the unit to restore bass in tracks where the lowest frequencies were completely mixed out or compressed.

To help you tailor the restored bass to your specific vehicle and musical tastes, the XBBR2 features two distinct parametric tuning controls:

• The Sweep Control: This dial allows you to select the exact center frequency (between 27 Hz and 63 Hz) that you want the BassTracer to target and restore.
• The Wide Control: This adjustment dictates the bandwidth, or the range of frequencies, that will be affected around your chosen center frequency. You can tune it tight for a narrow, punchy peak, or wide for a broader, smoother bass enhancement.

The Hidden Benefit of a 10V Max Preamp Output

The NVX XBBR2 BassTracer doubles as a premium line driver, meaning it amplifies the low-voltage audio signal coming from your head unit before it reaches your main amplifier. Many aftermarket radios and factory systems output a weak 2V or lower signal, which forces you to turn up the input gain on your amplifier to achieve desired volume levels, often introducing unwanted hiss and distortion.

By boosting that signal up to a maximum of 10V RMS, the XBBR2 allows you to keep the gain settings on your subwoofer amplifier exceptionally low. This high-voltage transfer minimizes the entry of background electrical noise into the audio chain and provides your amplifier with a clean, unclipped signal, resulting in cooler amplifier operation and increased system reliability.

Technical Specifications and Features

A look at the physical and electrical design of the XBBR2 reveals a platform built for flexible system integration and precise user control.

How Does the NVX XBBR2 Compare to the AudioControl Epicenter?

The NVX XBBR2 BassTracer delivers the same digital restoration capabilities and high-voltage output as–many would say–the industry-standard, the AudioControl Epicenter. However, the NVX does so at a much more attainable price point. Both processors operate on identical acoustic principles, identifying upper-frequency harmonics to accurately recreate lost sub-bass foundations.

While the Epicenter is a product with a premium price tag, the XBBR2 is engineered to maximize value without compromising on component quality. Furthermore, the XBBR2 includes a dual-control wired dash remote out of the box, allowing you to independently adjust both the overall subwoofer volume and the intensity of the bass restoration effect from the driver's seat. Many competing processors only allow for a single volume adjustment on their remote knobs.

Designing Your System Around a Bass Processor

Add to Cart

Integrating a bass restoration processor into your mobile audio system requires careful consideration of your downstream equipment and enclosure choices to prevent mechanical damage to your subwoofers. Because the XBBR2 can add massive amounts of low-frequency energy to songs that previously had none, your subwoofers will experience increased cone excursion.

If you're using a ported enclosure, it's vital to ensure your amplifier's subsonic filter is set correctly, typically around 3 Hz to 5 Hz below the enclosure's physical tuning frequency. This keeps the restored ultra-low frequencies from over-excurting the subwoofer cone below the box's tuning limit, which is a common cause of mechanical failure.

Additionally, you should always set your system's gains with the bass restoration effect turned on to ensure your amplifier doesn't introduce destructive clipping during heavy bass drops.
