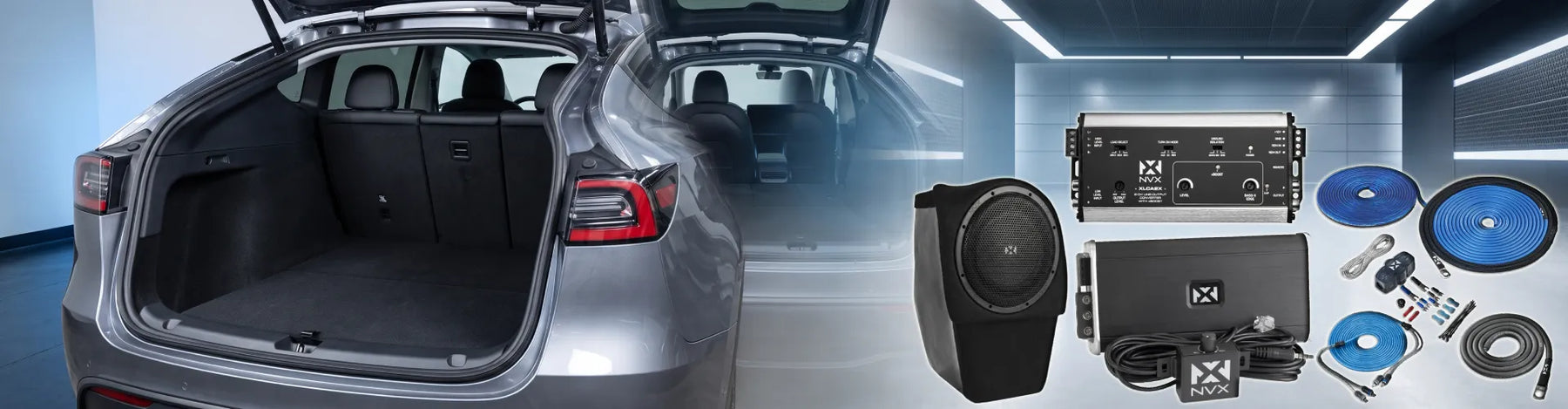

The Ultimate 2020-2023 Tesla Model Y Subwoofer Enclosure & Bass Package Buyer’s Guide
The NVX custom subwoofer platform for the 2020 to 2023 Tesla Model Y is an electric-vehicle audio upgrade engineered specifically for the Model Y platform. While Tesla vehicles deliver cutting-edge technology and whisper-quiet cabin acoustics, their factory sound systems lack physical, low-frequency sub-bass impact.
NVX offers six distinct configurations across both trunk corner pockets: empty enclosures (UBE Series), pre-loaded subwoofer boxes (BE Series), and complete plug-and-play amplified bass packages (PBK Series). Designed to tuck into the driver-side or passenger-side trunk storage wells, this platform supplies deep, punchy sub-bass without sacrificing primary floor space, sub-trunk storage, or EV driving range.
Where Is the NVX Subwoofer Enclosure Installed in Your Tesla Model Y?
The NVX custom subwoofer enclosure drops directly into the driver-side or passenger-side rear trunk corner storage pocket of the Tesla Model Y.
Each enclosure features a hand-laid fiberglass rear shell molded to match the inner sheet metal of the Model Y trunk well. It fits flush inside the side cavity, directing bass output inward toward the main cabin area.
Positioning the enclosure inside the trunk corner pocket provides two major operational advantages:
- Zero Cargo Floor Loss: Your main trunk floor panel, folding seat area, and deep sub-trunk floor tub remain 100% open and usable for luggage, groceries, and charging cables.
- Acoustic Corner Loading: Placing a subwoofer inside a corner boundary forces sound waves to bounce directly off the vehicle's metal body panels. This corner-loading effect acts like an acoustic horn, increasing overall sub-bass output and cabin gain without pulling extra electrical current from the main EV battery.
Vehicle Fitment Note: All enclosures in this platform are engineered specifically for 2020–2023 Tesla Model Y models. They drop into factory trunk side pockets without cutting, drilling, or custom panel modifications.
Why Is This Custom Setup Better Than Your Model Y's Stock System?
The NVX custom loaded subwoofer delivers up to 500W RMS of continuous bass (three times the output of the stock Tesla sub) inside a dense fiberglass cabinet that eliminates panel flex.
Factory Tesla sound systems rely on lightweight, low-power subwoofers tuned for basic fill rather than physical bass impact. A custom loaded subwoofer setup drastically outperforms stock audio:
- 500W RMS Continuous Power vs. Weak Factory Output: Stock speakers distort or compress when turned up. Delivering a true 350W to 500W RMS (700W Peak), this system maintains deep, unclipped sub-bass output across high volume levels.
- Rigid Fiberglass Shell vs. Thin Molded Plastic: Factory subwoofers rely on thin plastic housings that flex and rattle under acoustic load. The NVX BOOST box combines a dense, multi-layer fiberglass rear shell with a rigid 3/4-inch MDF front baffle to eliminate cabinet vibration.
- True Sub-Bass Control in a Silent EV Cabin: Electric vehicles have virtually no engine noise to mask loose or boomy audio. The custom sealed cabinet alignment acts as a pneumatic air spring behind the woofer cone, delivering fast, tight, and articulate kick-drum precision.
Sound & Configuration Guide: Comparing Driver, Passenger, and Dual Setups
Choosing the right SKU for your Model Y comes down to your installation location, budget, and desired sound output:
Sound Profile Breakdown
- Single Driver-Side or Passenger-Side Setup: Clean, articulate, and seamless low-end fill. Provides tight, well-balanced sub-bass that blends into factory door speakers while keeping one side trunk pocket open for gear.
- Dual Enclosure Setup (Driver + Passenger Side Installed Simultaneously): Chest-thumping authority and high-SPL cabin pressure. Doubling your cone surface area moves twice as much physical air, creating a wide, immersive bass soundstage across the entire rear hatch area.
Inclusion Level Options
- Empty Enclosure (UBE Series): Includes the custom fiberglass 10-inch sealed box with ~0.50 cu. ft. of internal air volume, pre-wired terminal cup, and 3/4" MDF front baffle. Ideal if you already own a shallow-mount 10-inch driver, monoblock amp, and wiring kit.
- Loaded Enclosure (BE Series): Includes the custom fiberglass box pre-loaded with an NVX SMW10D4 10-inch shallow-mount subwoofer pre-wired internally to a 2-ohm final mono load. Ideal if you already own a 2-ohm stable monoblock amplifier.
- Complete Bass Package (PBK Series): The ultimate all-in-one upgrade. Includes the loaded enclosure, an NVX Class-D Monoblock Amplifier, an NVX XLCA2X Active Line-Output Converter (for factory radio integration), and an NVX 100% Pure OFC Wiring Kit.
Comparing Packages
| In-Stock SKU Link | Location | Configuration Type | Power Rating (RMS / Peak) | Included Hardware & Components | Buy Now |
|---|---|---|---|---|---|
| UBE-TSLAY-G1D | Driver Side | Empty Enclosure | Depends on User's Woofer | Driver-Side Fiberglass Box + Terminal Cup | |
| BE-TSLAY-G1D | Driver Side | Loaded Enclosure | 350W–500W RMS / 700W Peak | Driver-Side Box + Pre-Installed 10" Woofer (2-Ohm Load) | |
| PBK-TSLAY-G1D | Driver Side | Complete Bass Package | 500W RMS / 700W Peak | Driver Loaded Box + Monoblock Amp + XLCA2X Active LOC + OFC Kit | |
| UBE-TSLAY-G1P | Passenger Side | Empty Enclosure | Depends on User's Woofer | Passenger-Side Fiberglass Box + Terminal Cup | |
| BE-TSLAY-G1P | Passenger Side | Loaded Enclosure | 350W–500W RMS / 700W Peak | Passenger-Side Box + Pre-Installed 10" Woofer (2-Ohm Load) | |
| PBK-TSLAY-G1P | Passenger Side | Complete Bass Package | 500W RMS / 700W Peak | Passenger Loaded Box + Monoblock Amp + XLCA2X Active LOC + OFC Kit |
Power Integration, EV System Safety & Radio Integration
EV Low-Voltage Electrical System Safety
Electric vehicles do not use mechanical alternators. Instead, a DC-to-DC converter steps down power from the high-voltage traction pack to supply low-voltage accessories. Because the NVX monoblock amplifier operates on a high-efficiency Class-D circuit topology (converting over 80% of current into clean sound), its low thermal loss and steady current draw run safely within the vehicle's accessory margins.
Connecting Power: 12V Lead-Acid vs. 16V Li-Ion Architectures
- 2020–2021 Model Y (12V Lead-Acid Battery): The amplifier power cable routes through the firewall grommet directly to the 12V battery terminal located under the front frunk cowl cover.
- 2022–2023 Model Y (16V Lithium-Ion Battery): Power is tapped directly from the high-current low-voltage accessory terminal post located beneath the rear passenger seat cushion, keeping cable runs short and efficient.
Factory Touchscreen Integration via Active LOC
The Tesla infotainment system lacks RCA outputs. The included NVX XLCA2X Active Line-Output Converter taps into factory speaker lines near the stock amplifier or door harness, converting high-level signals into clean low-level RCA outputs. Integrated xBOOST technology restores sub-bass frequencies, allowing you to retain all touchscreen controls, navigation prompts, and Bluetooth streaming without modifying Tesla software.
100% Pure OFC Wiring Requirement
To prevent electrical resistance and voltage drops, complete packages include an NVX Oxygen-Free Copper (OFC) Wiring Kit. Pure copper conductors ensure maximum current delivery to the amplifier without generating excess heat.
Frequently Asked Questions
Will installing this subwoofer package void my Tesla warranty?
No. Under the federal Magnuson-Moss Warranty Act, aftermarket component installation cannot void a vehicle warranty unless the manufacturer proves that the specific aftermarket part directly caused a failure. Because this audio setup connects strictly to the low-voltage accessory system, it remains completely isolated from the high-voltage traction battery and electric drivetrain.
Why is a sealed enclosure design better than a ported box for Tesla cabins?
Sealed enclosures deliver tight, controlled, and articulate transient response. In ultra-quiet EV cabins without engine noise, boomy bass from ported boxes can sound loose or uncontrolled. Additionally, sealed designs require far less internal volume (~0.50 cu. ft.), allowing the cabinet to fit completely flush inside the trunk side pocket.
