The Ultimate 2009-2018 Ford F-150 SuperCrew Cab Subwoofer Enclosure Buyer’s Guide

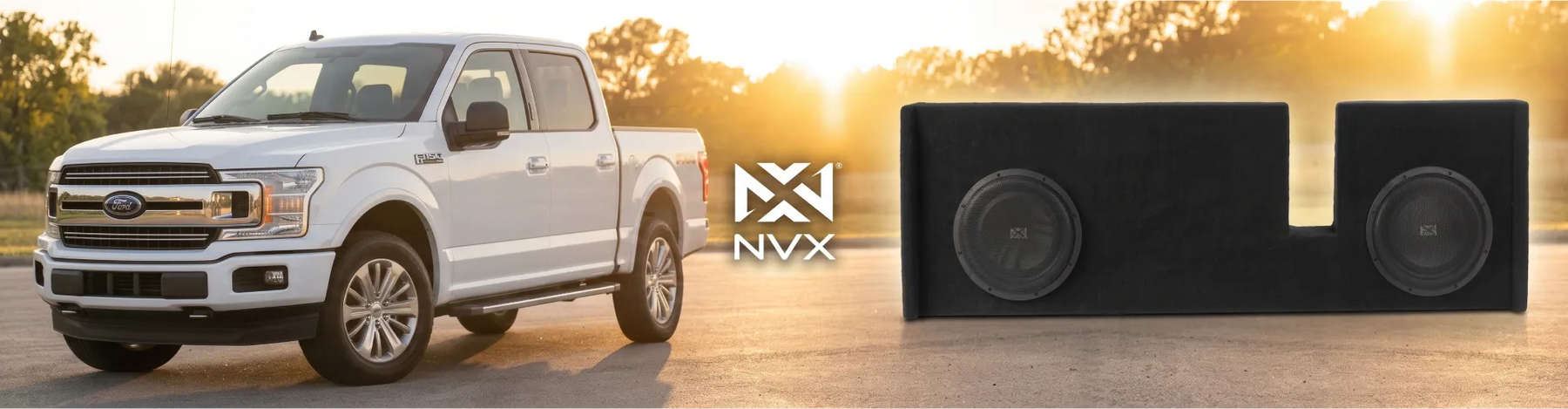

The NVX custom subwoofer platform for the 2009 to 2018 Ford F-150 SuperCrew Cab (Crew Cab featuring four full-size doors) offers an integrated under-seat bass upgrade engineered specifically for full-size Ford pickup trucks.

The Ford F-150 SuperCrew is known for exceptional rear-seat legroom, flat rear floorboards, and heavy-duty utility. However, its factory audio systems usually lack the proper drivers that can produce impactful and full-sounding bass.

Good thing NVX offers under-seat bass solutions that can give you and your passengers an immersive and full-sounding bass. You can choose between four options:

• a standalone dual 10" empty enclosure (VE-FRD-150CCG12-D10S)
• a standalone dual 10" loaded enclosure (LVE-FRD-150CCG12-D10S)
• a standalone dual 12" empty enclosure (VE-FRD-150CCG12-D12S)
• and a standalone dual 12" loaded enclosure (LVE-FRD-150CCG12-D12S).

Where Is the NVX Subwoofer Enclosure Installed in Your Ford F-150?

The NVX custom subwoofer enclosure is installed directly underneath the rear passenger bench seat, sliding flat into the factory under-seat floor recess.

Its low-profile design fits beneath the rear seat frame, allowing the seats to fold up or down freely without contacting the cabinet or pinching speaker surrounds. The enclosure utilizes a down-firing sealed layout, directing the woofer cones straight down toward the carpeted metal floorboard.

Mounting the enclosure under the rear bench provides two major operational advantages:

1. Physical Protection: Facing the subwoofers downward shields the speaker cones and butyl rubber surrounds from boots, tools, gear bags, or cargo placed on folded seats.
2. Acoustic Boundary Loading: Sound waves bounce directly off the carpeted steel floor pan before expanding upward into the cabin. This boundary reflection acts as a natural acoustic horn, increasing overall sub-bass output and low-end efficiency inside full-size pickup cabs.

Important Cab Fitment Note: All enclosures in this lineup are engineered strictly for 2009–2018 Ford F-150 SuperCrew Cab (Crew Cab featuring four full-size doors) models. They will NOT fit Regular Cab models due to the absence of an under-seat floor pan.

Why NVX Outperforms Other Brands in Value

NVX makes custom-fit enclosures accessible directly to truck owners. This eliminates the need for bulky square boxes or flimsy plastic all-in-one powered units.

1. Heavy-Duty 3/4" MDF Construction vs. Flexing Plastic: Generic powered units frequently use thin plastic shells that flex, vibrate, and rattle under acoustic load. NVX enclosures use dense, CNC-mitered 3/4-inch medium-density fiberboard (MDF) to eliminate cabinet flex and resonance.
2. 700W to 800W RMS High-Output Engineering: While plastic powered subs max out at 100W–150W RMS, these NVX dual-subwoofer setups handle an honest 700W to 800W RMS (1400W–1600W Peak) using carbon fiber reinforced polypropylene cones and heavy Y30 ferrite magnets.
3. Direct Value Engineering & OEM Integration: Finished in premium black automotive carpet color-matched to original Ford interior linings, the box tucks away discreetly under the rear seat for a clean, factory-installed look while avoiding heavy brand markups.

Configuration Comparison: Pick Your Ideal Setup

Selecting the right SKU for your Ford F-150 SuperCrew Cab depends on your output goals, driver size preference, and current hardware setup:

1. Dual 10" vs. Dual 12" Configurations

Dual 10-inch models (700W RMS) react rapidly to fast musical transients for snappy kick drums across rock, country, and pop. Dual 12-inch models (800W RMS) displace significantly more air volume, extending sub-bass reach for deep hip-hop, EDM, and low-frequency bass tracks.

2. Inclusion Tier: Empty vs. Loaded Enclosures

• Empty Enclosures (VE Series): Custom 3/4" MDF sealed box with terminal cups and internal wiring. Perfect if you already own 10-inch or 12-inch shallow-mount subwoofers.
• Loaded Enclosures (LVE Series): Factory pre-loaded with NVX S-Series or SMW shallow-mount subwoofers pre-wired to a 1-ohm final mono load.

Comparison Matrix

Why a Sealed Enclosure Is Ideal for Ford F-150 SuperCrew Cab Acoustics

Pickup truck cabs present compact, highly reflective acoustic spaces surrounded by glass and metal. In this environment, ported (vented) boxes can frequently generate loose, boomy bass overhang that masks mid-range vocals.

A sealed enclosure acts as a pneumatic air spring behind the woofer cone. As the voice coil moves, internal air pressure keeps the cone under strict mechanical control, preventing over-excursion and yielding fast, articulate transient response.

Inside a SuperCrew truck, a sealed enclosure produces tight, punchy kick drums and precise basslines that hit hard and stop on a dime without sounding muddy.

Power Integration, System Safety & Factory Radio Integration

Overcoming Factory Ford SYNC Radio Bass Roll-Off

Factory Ford SYNC head units feature internal processing algorithms that automatically decrease low-frequency bass output as you raise the volume knob. This factory roll-off protects weak door speakers, but leaves aftermarket subwoofers sounding flat at higher volume levels.

Connecting an active line-output converter like the NVX XLCA2X taps into factory speaker lines, transforms high-level signals into clean low-level RCA outputs, and uses integrated xBOOST signal restoration (30 Hz–60 Hz) to feed a flat, distortion-free sub-bass signal to your amplifier.

Recommended Monoblock Amplification

• For Dual 10" or 12" Loaded Enclosures (700W–800W RMS @ 1 Ohm): Pair with the NVX VAD10001v2 Class-D Monoblock Amplifier. Supplying up to 1000W RMS at 1 ohm, it provides clean power headroom in a compact chassis that easily mounts underneath a front seat frame.

100% Pure OFC Wiring Grid Requirement

To ensure clean current flow from the battery without electrical resistance, installers should run a 100% pure oxygen-free copper (OFC) wiring kit (such as the 4-gauge NVX XKIT42). Pure copper conductors prevent high wire resistance and voltage drops, keeping your amplifier operating safely and reliably.
