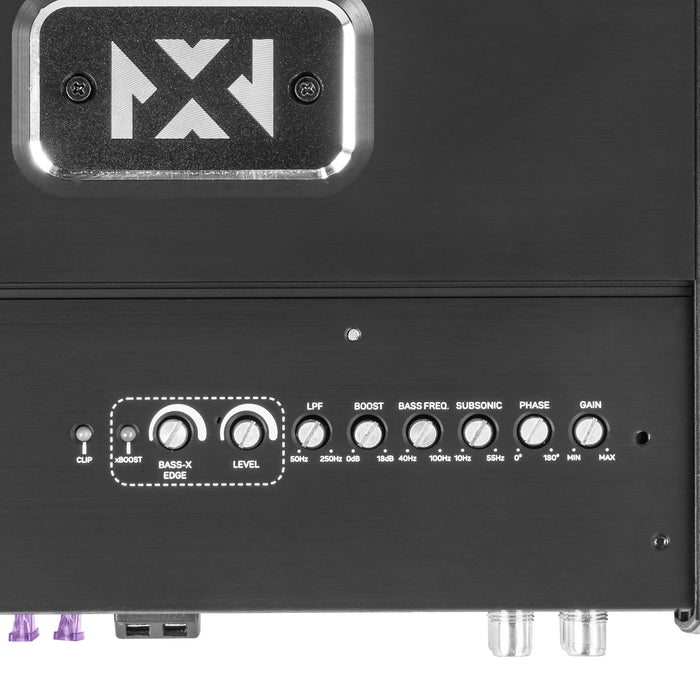

XQA6001 600W RMS XQ-Series SQ Hi-Res Class D 1-Ohm Stable Monoblock Amplifier with X-Boost

Product Details:

• XQ-Series SQ Hi-Res Class D 1 ohms Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 250 watts x 1 channel
• 2 ohms: 400 watts x 1 channel
• 1 ohm: 600 watts x 1 channel
• Total RMS power output: 600 watts
• LED Indicators: Power, Protect, Clip, and X-Boost lights
• Includes a Wired Bass Level Remote Control
• Speaker-Level (High-Level) Inputs
• Tiffany-Style RCA Pre-Amp Inputs and Outputs
• Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
• 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
• X-Boost Circuitry: Enhances bass response and compensates for bass roll-off
• Maximum Input Level Control: Features LED optimization and clip indicators
• Input sensitivity: 0.2 - 10 volts
• Frequency Response: 10 - 400 Hz
• Total Harmonic Distortion (THD): <0.1%%
• Signal to Noise Ratio: >96 dB
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave (Metal Shaft with 41 Click Positions)
• Subsonic filter: 10 - 55 Hz, 24 dB/octave
• Variable Bass Boost: 0 - 18 dB @ 45 Hz
• Adjustable Phase Control: 0° to 180°
• Operating Voltage: 9.5V - 16V
• Fuse Rating: 70A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 9.22" L x 6.85" W x 1.89" H
• 1-year Warranty from the Original Purchase Date

 XQA owner’s manual
