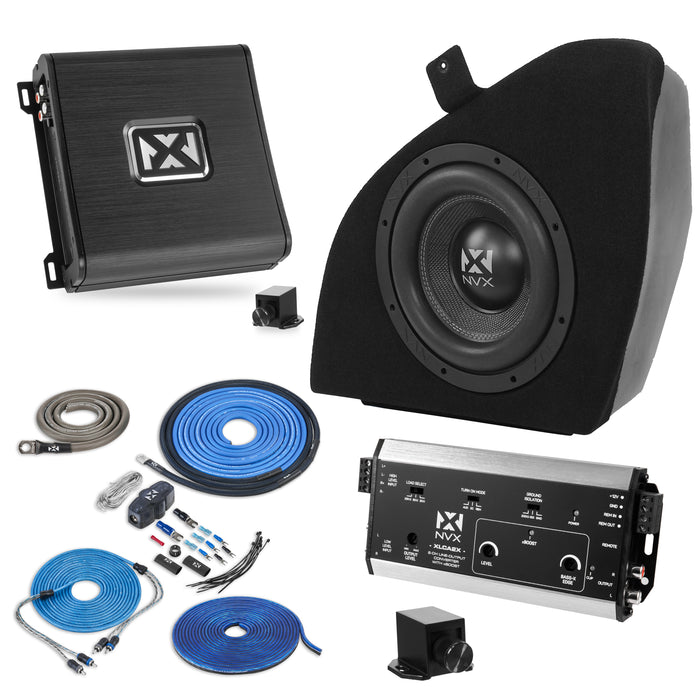

2012-2020 Tesla Model S Bass Package - Custom Single 10" 1000W RMS Amplified Subwoofer Enclosure with Line Out Converter and Wiring Kit - PBK-TSLAS-VCW104
Sold out
Original price
$959.99
Original price
$959.99
-
Original price
$959.99
Original price
$959.99
Current price
$839.99
$839.99
-
$839.99
Current price
$839.99
Confirm fitment. Select your ride.

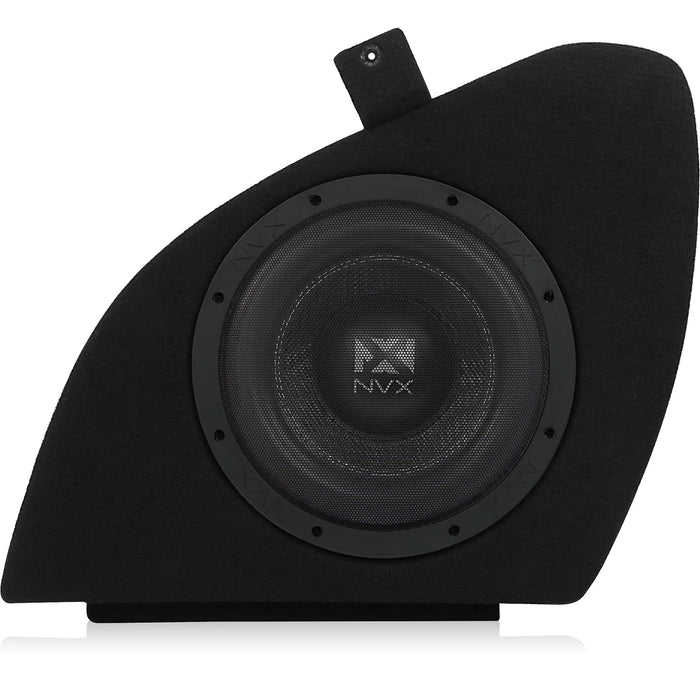

NVX Loaded BOOST Box - 2012-2020 Tesla Model S - BE-TSLAS-VCW104
For select 2012-2020 Model S - Single 10" 1000W RMS Loaded BOOST Sealed Enclosure
Quantity: 1
Product Details:

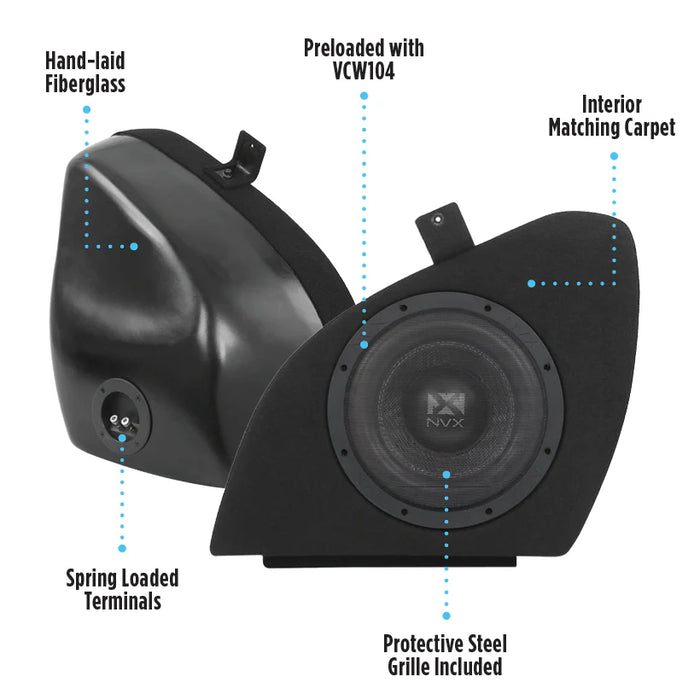

- Custom-fit Sealed BOOST enclosure with 1 10" VC Series Subwoofer
- Compatible with select 2012-2020 Model S
- Not compatible with Tesla Model S Plaid
- Made with hand-laid fiberglass shell covered in Carpet
- Enclosure finish matches the interior of your vehicle

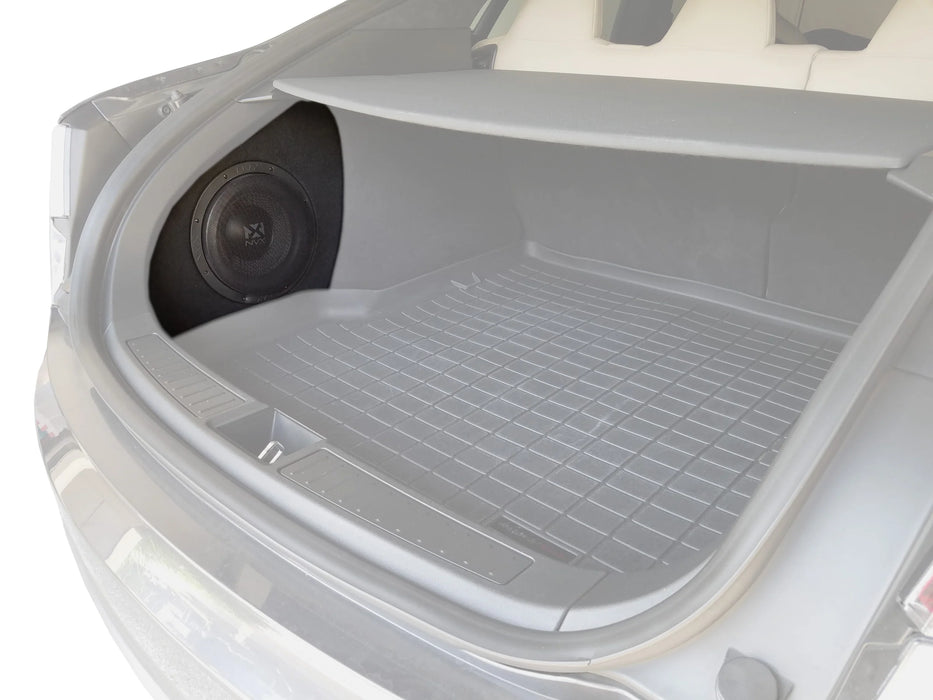

- Installs in the driver's side of the trunk and sacrifices very little space
- Loaded with one 10" NVX VCW104v3 subwoofer
- Power Handling:
- Peak: 2000 watts
- RMS: 1000 watts
- Final Impedance: 2-ohm
- Carbon Fiber Reinforced Non-Pressed Paper cone
- High Roll Foam surround
- Black nylon surround stitching
- Stamped steel vented basket with NVX punched logo
- 3” 4-layer high temperature black Aluminum voice coil
- Progressive roll single-layer spider with integrated tinsel leads
- Optimized high-velocity pole vent
- One piece T-Yoke with vented magnet gap
- 165 oz. Triple stacked high energy Y35 Ferrite magnet with protective rubber boot
- Install guide available here
- Frequency Response: 20 - 200 Hz
- Sensitivity: 83 dB
- 1-year Manufacturer's Warranty

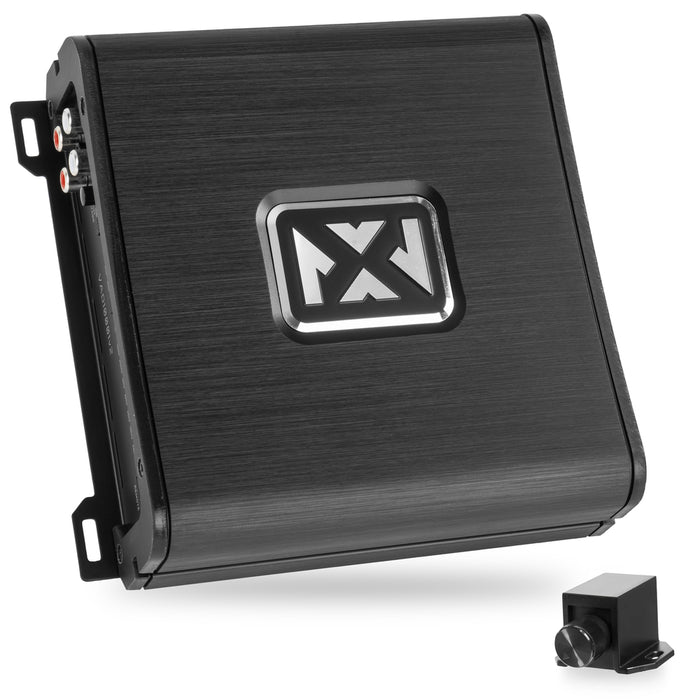

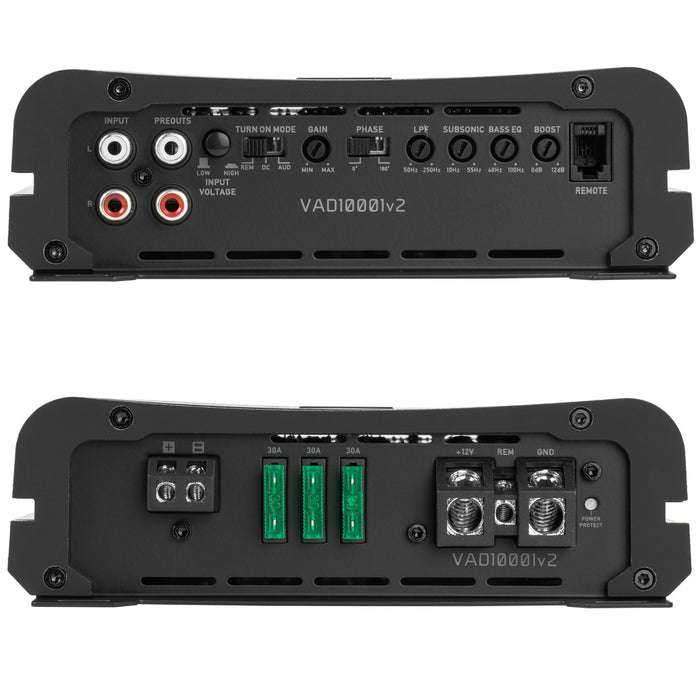

NVX VAD10001 v2 (VAD10001v2)
2000W Peak (1000W RMS) Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote (Marine Certified)
Quantity: 1
Product Details:
- Marine Certified V Series Class D 1 ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohm: 420 watts x 1 channel
- 2 ohm: 760 watts x 1 channel
- 1 ohm: 1000 watts x 1 channel
- Total RMS power output: 1000 watts
- Conformal Coated Marine Grade Circuit Board
- LED Indicators: Power and Protect lights
- Platinum-plated Power and Speaker terminals
- Includes a Wired Bass Level Remote Control
- Balanced differential inputs eliminate noise picked up by signal cables
- Speaker-Level (High-Level) Inputs
- RCA Pre-Amp Outputs
- Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
- 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
- Input sensitivity: 0.2 - 18 volts
- Frequency Response: 20 - 250 Hz
- Total Harmonic Distortion (THD): 0.3%
- Signal to Noise Ratio: >85 dB
- Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
- Subsonic filter: 10 - 55 Hz, 24 dB/octave
- Variable Bass Boost: 0 - 12 dB @ 45 Hz
- Phase Control: 0° to 180° Switch
- Fuse Rating: 90A
- 4 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 7.16" L x 6.81" W x 2.05" H

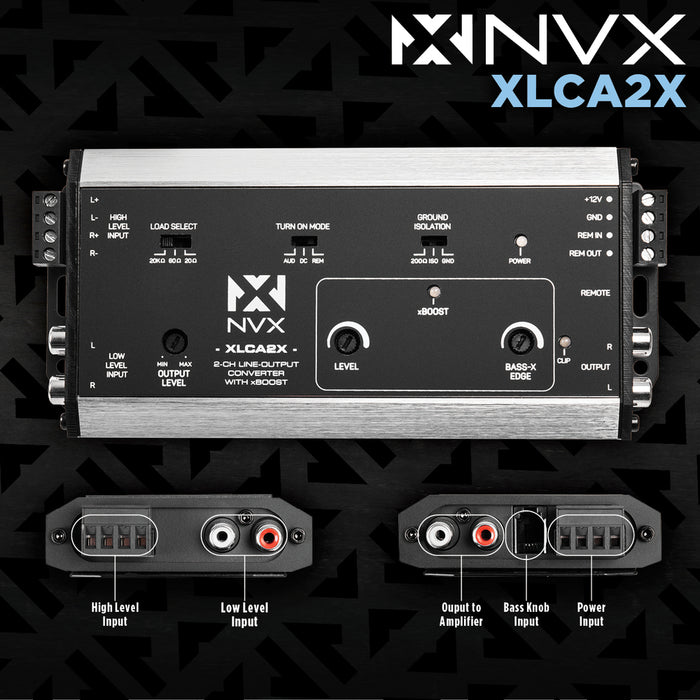

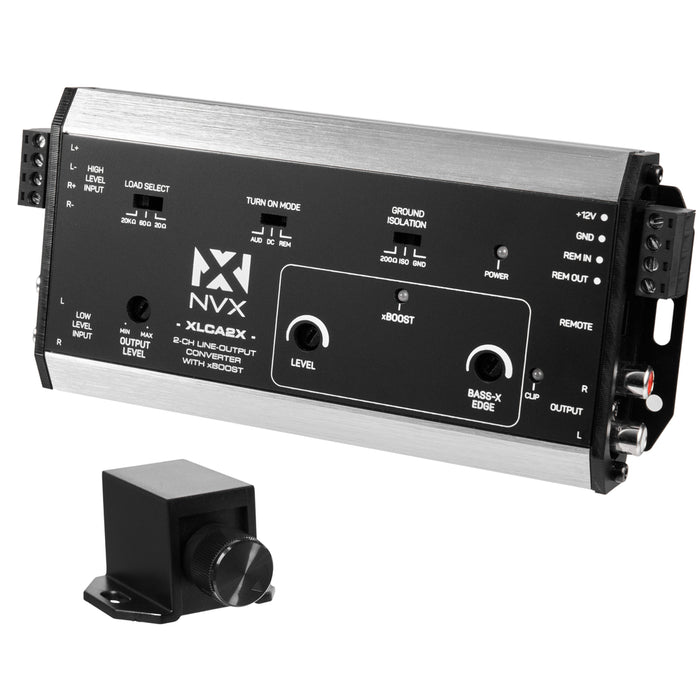

NVX XLCA2X
2-Channel Line Output Converter Digital Bass Enhancer with xBOOST, Impedance Matching, and Remote Level Control
Quantity: 1
Product Features:
- Active 2 channel line output converter
- Designed to work with factory and aftermarket audio systems
- Speaker-level inputs handle up to 30V (225 watts RMS)
- RCA outputs Provides up to 9.5 Volts of output
- Auto turn-on via DC offset or Audio detection
- Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
- 12 volt turn-on output for aftermarket amplifiers
- Selectable Ground Isolation switch to eliminate ground and alternator noise
- Molex terminals for speaker signal and power
- Wired remote bass level control included
- LED clipping status indicator
- Features digital Bass-X enhancement function
- Separate high and low level inputs (balanced and unbalanced inputs)
- Selectable impedance load: 20, 60, 20k ohm
- Frequency response: 10 - 25000 Hz
- Signal-to-noise ratio: 110dB
- Total harmonic distortion (THD): 0.01%
- Dimensions: 3.23" W x 7.0" L x 0.96" H
- 1-year Manufacturer's Warranty
NVX XKIT82
Full Spec 8 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 800 Watts
Quantity: 1
Product Details:
- 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
- Designed for car audio systems up to 800 watts RMS
- Made from 100% Oxygen-Free Copper (OFC)
- Tinned conductors for corrosion resistance
- Pre-installed black nylon mesh covering protects the power wire from damage
- Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
- Pre-terminated seamless power and ground ring terminals provide reliable performance
- Full spec power and speaker wire meet or exceed American Wire Gauge standards
- CEA-2015 and BC5W2 compliant
- V-Series RCA Interconnect Cable
- Shielded noise-rejecting coaxial construction provides protection against interference
- Split-tip silver-plated ends offer high-quality performance
- Molded ends equipped with colored channel identifiers for easy recognition
- Twisted-pair construction featuring two conductors per channel
- Includes an assortment of wire termination hardware and cable ties
- 1-year Manufacturer's Warranty
Kit includes:
- 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal
- 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
- 17 ft. Clear 18 gauge remote lead wire
- 20 ft. Frosted Black/Blue 16 gauge speaker wire
- One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
- One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
- One Black rubber firewall grommet
- Two 8 Gauge Nickel Plated spade terminals
- Four 18 Gauge Spade terminal
- Two 18 Gauge Red butt connectors
- Four 16 Gauge quick disconnect
- Five 16 Gauge Nickel Plated spade terminals
- Two Heat Shrink tubes with the NVX logo
- Ten 6" Black zip ties
