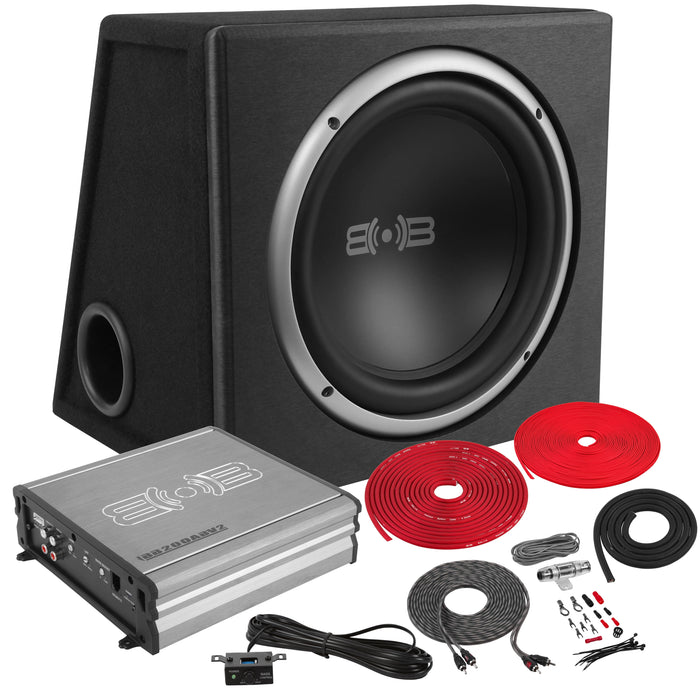

BPKG112v2 | 600W Peak Single 12" Loaded Ported Subwoofer Package with Amplifier & Wiring Kit

Package Details:

• Single 12" Loaded Ported Subwoofer Enclosure
• Preloaded with a single 12" subwoofer
• Class A/B Amplifier with Bass Knob
• Complete 8 Gauge Wiring Kit
• Works with both Factory and Aftermarket Audio Systems

Subwoofer Details:

• 12" Belva Subwoofer
• Power Handling:
• Peak: 600 watts
• Impedance: 2-Ohm SVC
• Polypropylene cone
• Durable rubber surround
• 1.5" black aluminum voice coil
• 37 oz. ferrite magnet motor structure

Amplifier Details:

• Belva BB200ABv2
• Class-A/B 2-Ohm Stable Monoblock Amplifier
• Max Power Rating:
• 4 ohms: 200 watts x 1 chan.
• 2 ohms: 500 watts x 1 chan.
• Adjustable gain
• LPF: 40-300Hz
• Bass Boost: +0-12DB
• One pair of preamp outputs
• High level/speaker level inputs
• Remote bass knob included
• 25A fuse

Enclosure Details:

• Single 12" Ported Subwoofer Enclosure
• Preloaded with Belva subwoofer
• 3/4 MDF (Medium Density Fiberboard) Construction
• Each Piece is CNC Cut Exact to Specification
• Spring Loaded push terminals
• Dimensions: 14.6" W x 11.81" H x 5.12" Top Depth x 9.45"Base Depth

Amp Kit Details:

• Complete 8 Gauge 2-Channel Amplifier Installation Kit
• Designed for car audio systems up to 600 watts RMS
• Kit includes:

1. 17 ft. (5.2 meters) Red 8 gauge power wire
2. 3 ft. (.91 meters) Black 8 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
5. 20 ft. (6.1 meters) 16 Gauge Speaker cable
6. One MINI-ANL Fuse Holder with a 60 amp fuse
7. One Black rubber firewall grommet
8. One 8 Gauge Red chrome plated ring terminals
9. One 8 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Red Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
