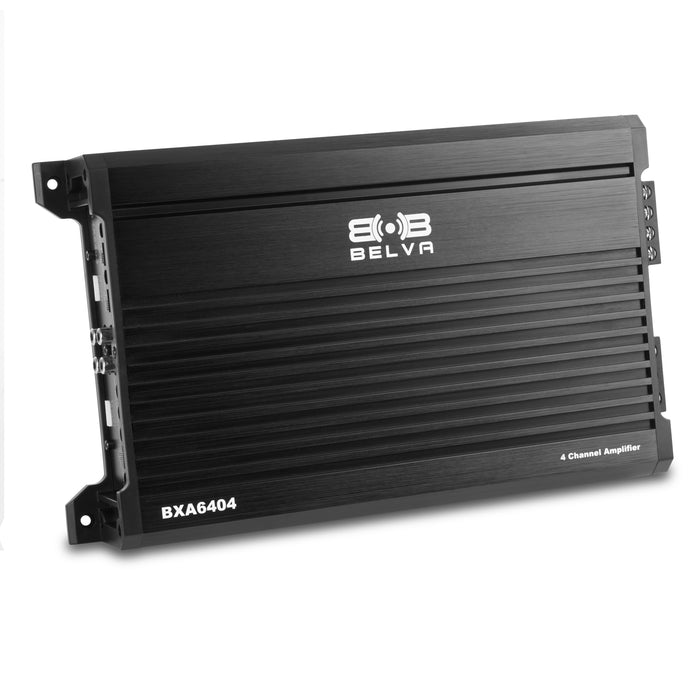

BXA6404 | 640W Peak BX-Series Class A/B 4-Channel Amplifier

Product Details:

• Belva BX Series Class A/B 2 ohms Stable 4-Channel Amplifier
• Peak Power Rating:
• 4 ohms: 80 watts x 4 channels
• 2 ohms: 160 watts x 4 channels
• Bridged, 4 ohms: 320 watts x 2 channels
• Total power output: 640 watts
• Pulse Width Modulated MOSFET power supply
• LED Power/Protect Light
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• Low level: 200mV - 8 volts
• Frequency Response: 10 - 30,000 Hz
• Total Harmonic Distortion (THD): 0.05%
• Signal to Noise Ratio: 96 dB
• Variable high-pass filter: 80 - 1,200 Hz
• Variable low-pass filter: 50 - 250 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 50A
• 8 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 7.48" W x 11.02" L x 2.00" H
