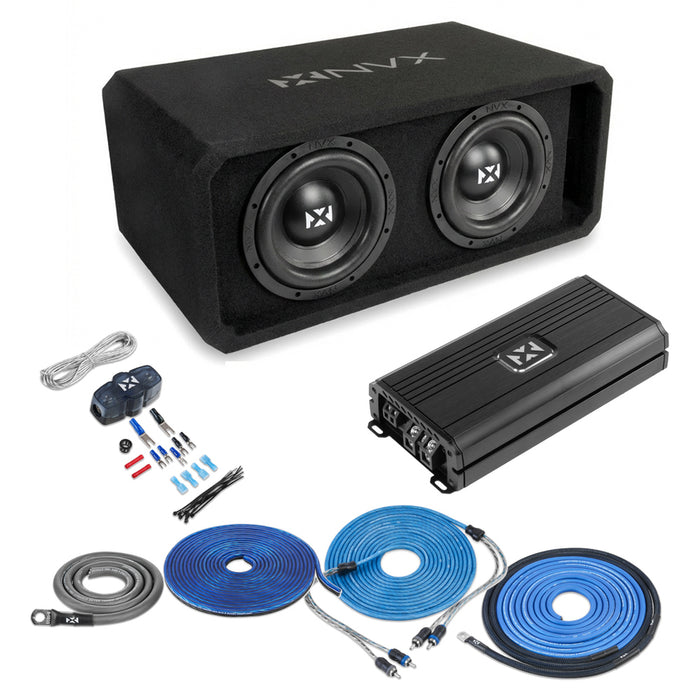

NVX Dual 8" Complete Bass System w/ Ported Box, Amp, and Wiring Kit
Upgrade your vehicle's audio with the ultimate NVX 8-inch Subwoofer Bass Package. This bundle delivers a massive 800W RMS of deep, clean bass. It features two 8" NSW82v3 Dual 2-Ohm subwoofers, paired with a custom-tuned dual 8" MDF ported enclosure for maximum acoustic response. Powering the system is the NDA12001 Class-D monoblock amplifier, delivering an efficient 850 watts at 2-Ohms to perfectly match your subwoofers. To tie it all together, we include a premium 4-Gauge OFC complete wiring kit to ensure maximum current flow and optimal performance. Get earth-shaking, space-saving bass in one convenient, complete car audio kit!

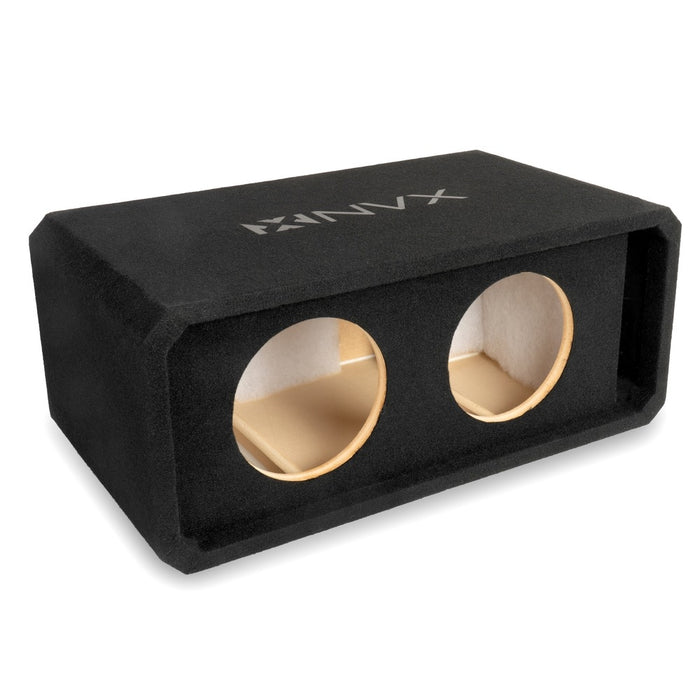

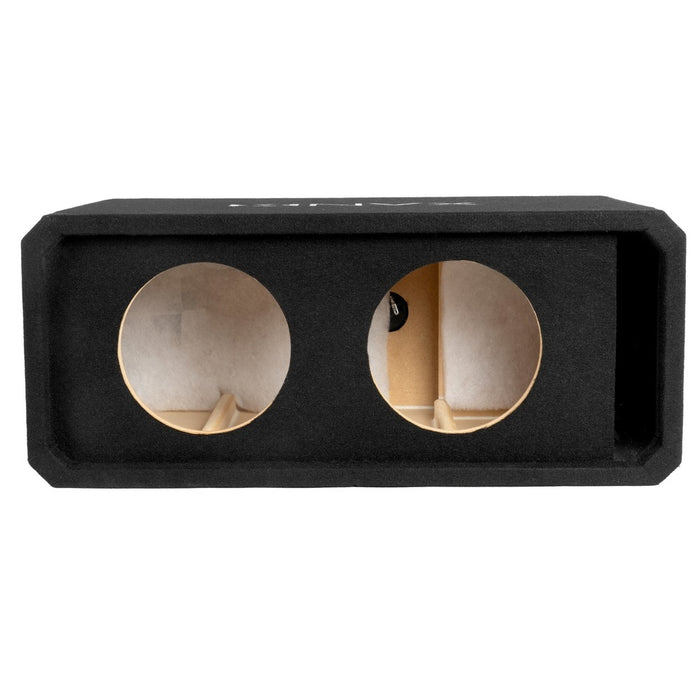

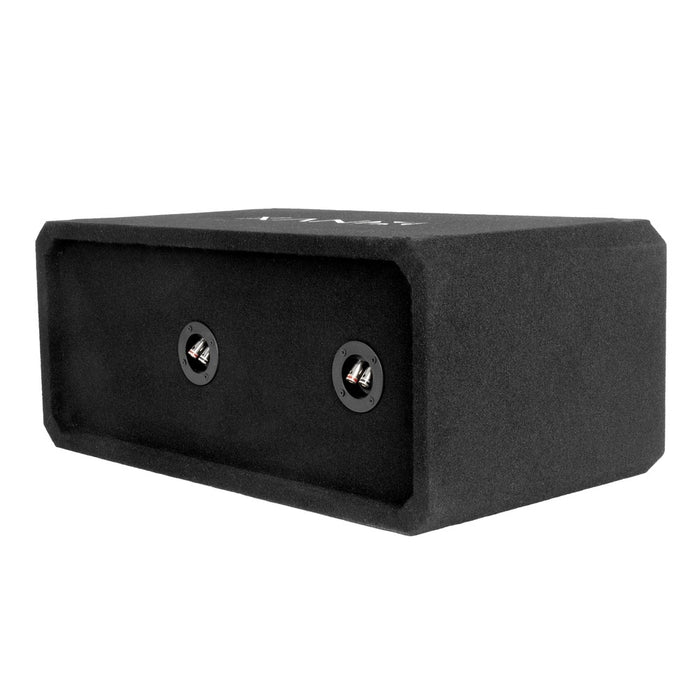

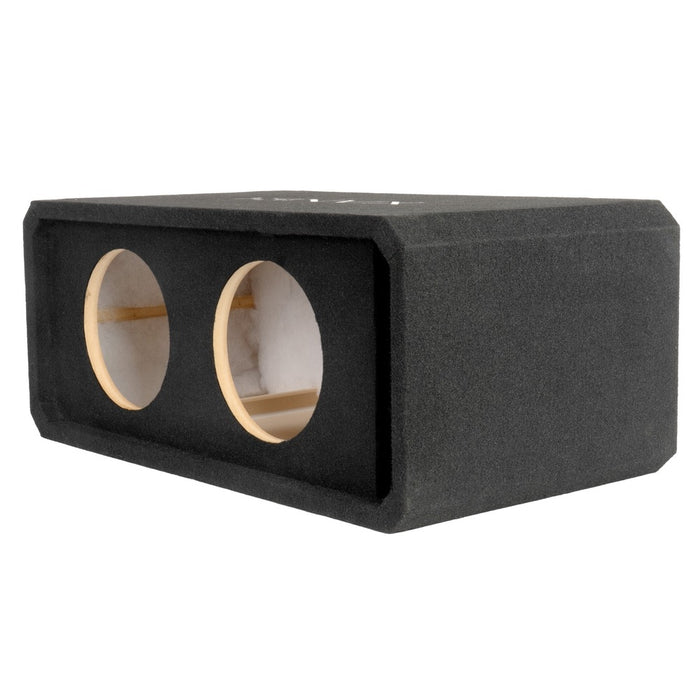

NVX NE82P
Dual 8" Slot Ported 3/4" MDF Black Carpeted Subwoofer Enclosure – 1.5 Cu. Ft. with Polyfil and NVX Logo
Quantity: 1
Product Details:
- 8" Dual Ported Subwoofer Enclosure
- Made from 3/4" Medium Density Fiberboard (MDF) construction
- Built with precision CNC technology for exceptional accuracy
- Pre-lined with Poly-Fil for improved acoustic response
- Premium Black Carpet with Black NVX Logo
- Spring Loaded Push Terminals
- Maximum subwoofer mounting depth: 8-5/8"
- Subwoofer cutout diameter: 7-3/8"
- Internal box volume: 1.5 cubic feet
- Port Tuning Frequency (Fb): 38 Hz
- Dimensions: 15.25" D x 27.50" W x 11.50" H
- Authorized Internet Dealer
- 1-year Sonic Electronix Warranty
Port Specifications:
- Tuning Frequency: 38 Hz
- Port Width: 2"
- Port Height: 10"
- Port Length: 19.25"

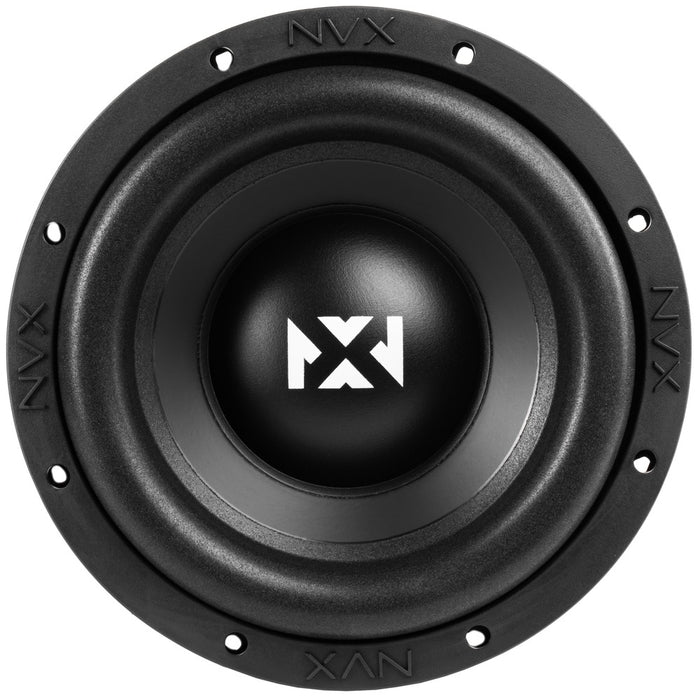

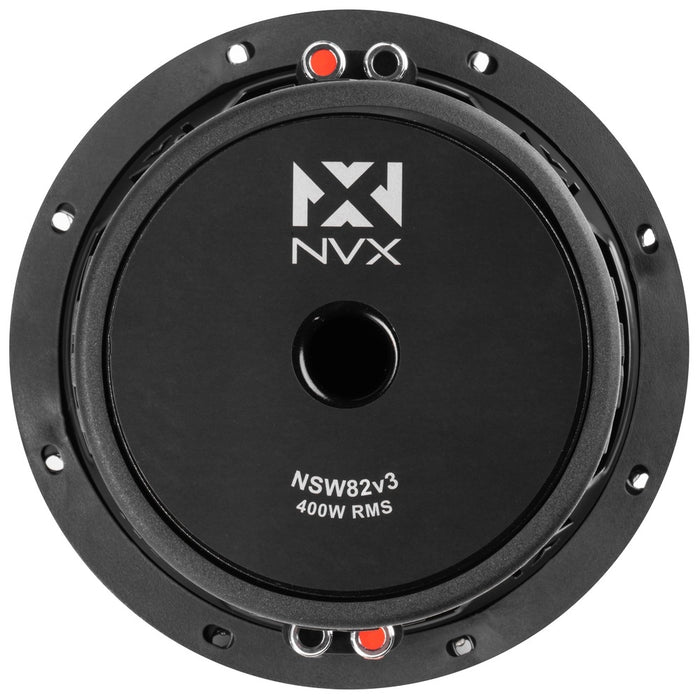

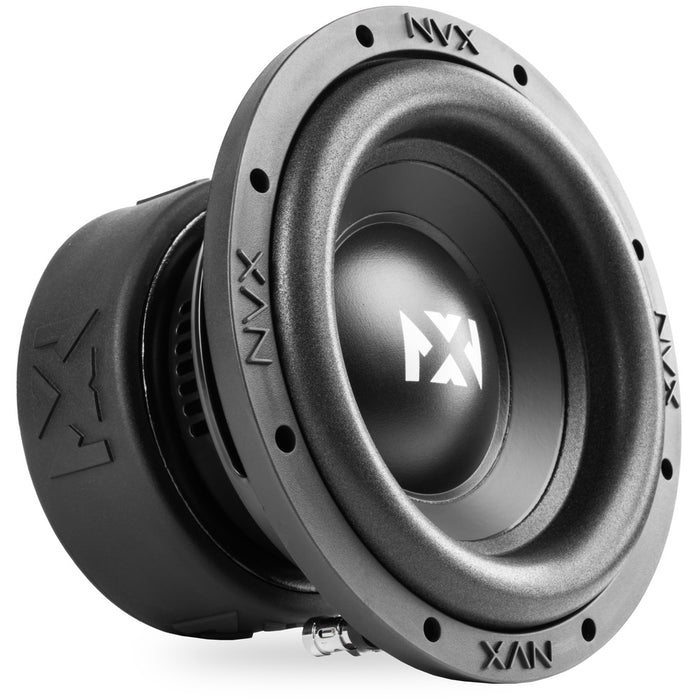

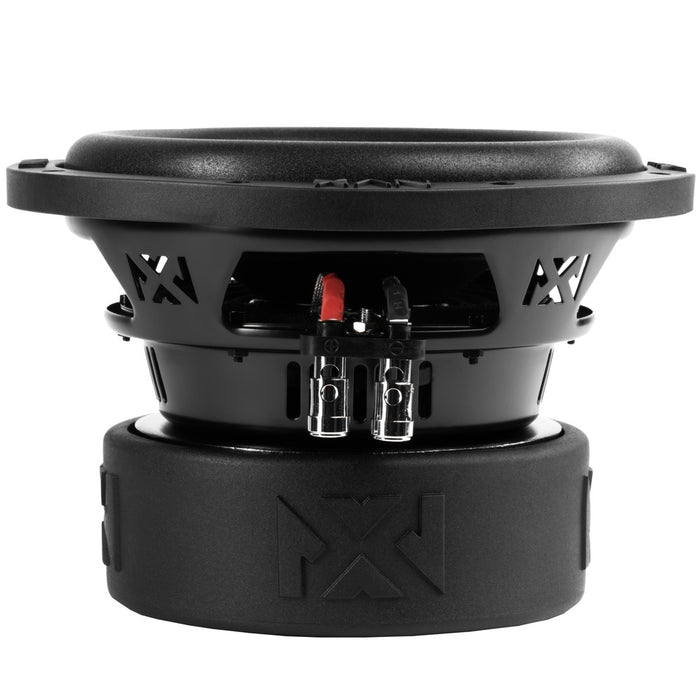

NVX NSW82 Version 3 (NSW82v3)
800W Peak (400W RMS) N-Series v3 8" Dual 2-Ohm Car Subwoofer
Quantity: 2
Product Details:
- 8" Dual 2 ohm N-Series Subwoofer
- Power Handling:
- Peak: 800 watts
- RMS: 400 watts
- 10.5 mm Xmax
- Enhanced Pressed Paper Cone
- High-Roll Foam Surround
- Stamped Steel Vented Basket with NVX Punched Logo
- 2.0" High Temperature Copper Voice coil with Aluminum Former
- Progressive Roll Single-layer Spider with Integrated Tinsel Leads
- Optimized High-Velocity Pole Vent
- 90 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
- Frequency Response: 20 - 200 Hz
- Resonance Frequency (Fs): 39.10 Hz
- Sensitivity: 85 dB
- Recommended ported box volume: .75 cubic feet
- Top-mount depth: 4.98"
- Cutout diameter: 7.12"
- CTA-2031 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

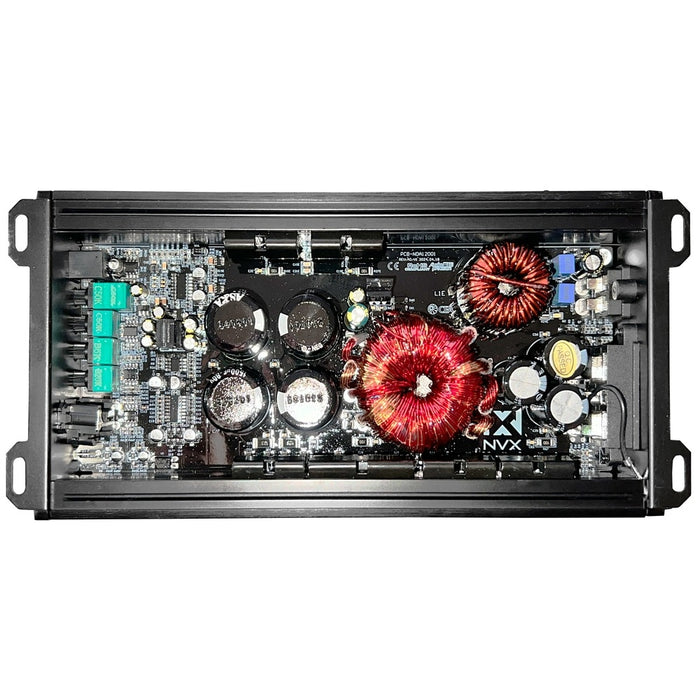

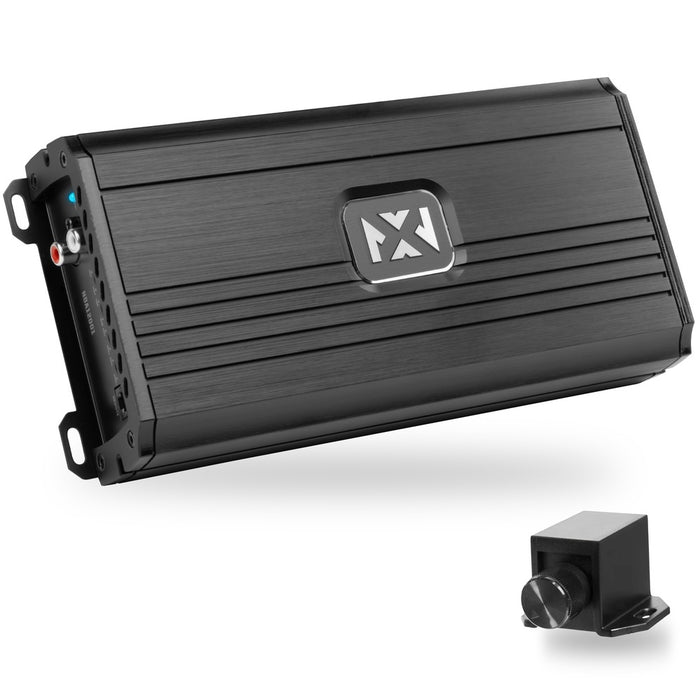

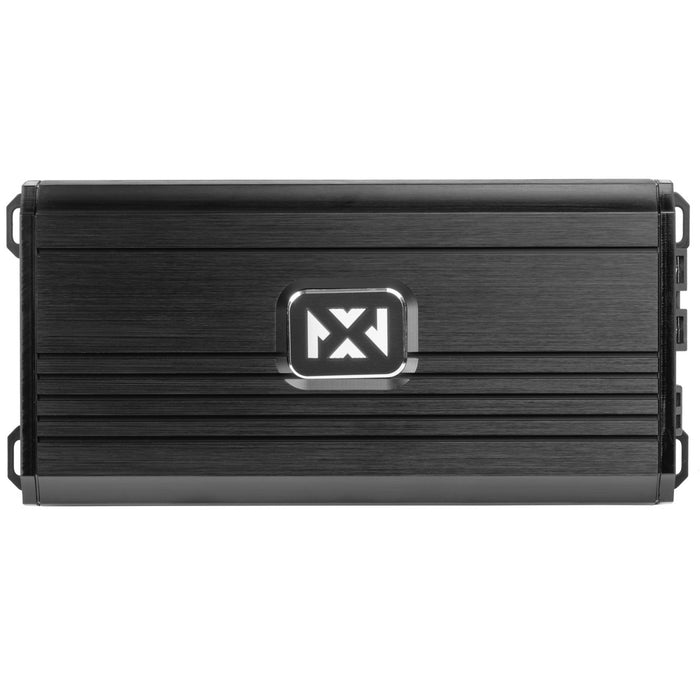

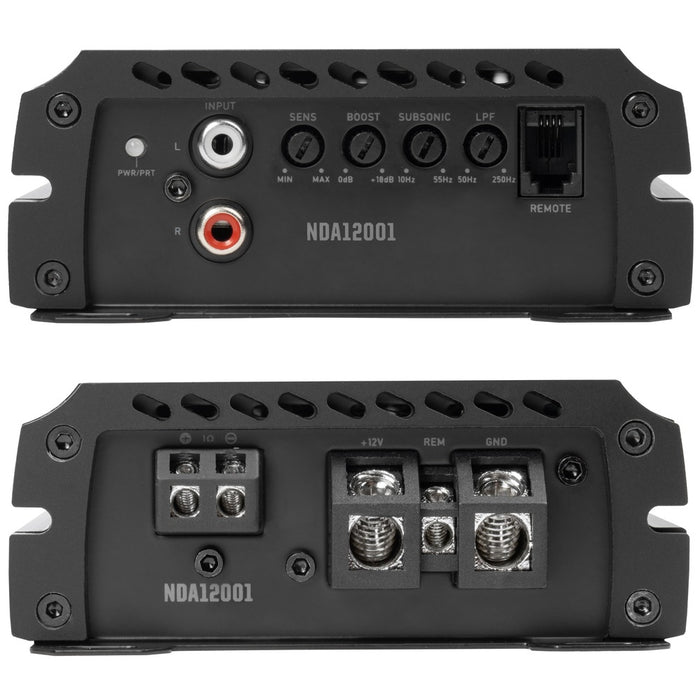

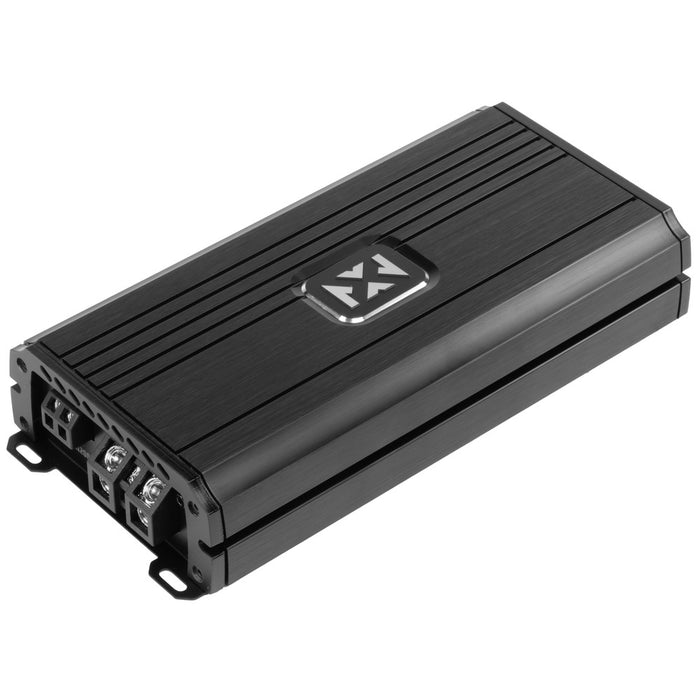

NVX NDA12001
2400W Peak (1200W RMS) N-Series Class-D 1-Ohm Stable Monoblock Amplifier with Remote Bass Knob
Quantity: 1
Product Details:
- N-Series Class D 1 ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohm: 500 watts x 1 channel
- 2 ohm: 850 watts x 1 channel
- 1 ohm: 1200 watts x 1 channel
- Total RMS power output: 1200 watts
- LED Power/Protect Light
- Wired bass level remote control included
- Speaker-level (high-level) inputs
- Signal sensing remote turn-on
- 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
- Balanced differential inputs eliminate noise picked up by signal cables
- Input sensitivity:
- Low level and High level: 0.2 - 10 volts
- Frequency Response: 20 - 250 Hz
- Total Harmonic Distortion (THD): <0.1%%
- Signal to Noise Ratio: >96 dB
- Variable low-pass filter: 50 - 250 Hz
- Subsonic filter: 10 - 55 Hz
- Variable Bass Boost: 0 - 18 dB
- 4 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 9.37" L x 4.42" W x 1.73" H
- Authorized Internet Dealer
- 1 Year Manufacturer's Warranty
- MFR #: NDA12001
NVX XKIT42
Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1
Product Details:
- 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
- Designed for car audio systems up to 1500 watts RMS
- Made from 100% Oxygen-Free Copper (OFC)
- Tinned conductors for corrosion resistance
- Pre-installed black nylon mesh covering protects the power wire from damage
- Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
- Pre-terminated seamless power and ground ring terminals provide reliable performance
- Full spec power and speaker wire meet or exceed American Wire Gauge standards
- CEA-2015 and BC5W2 compliant

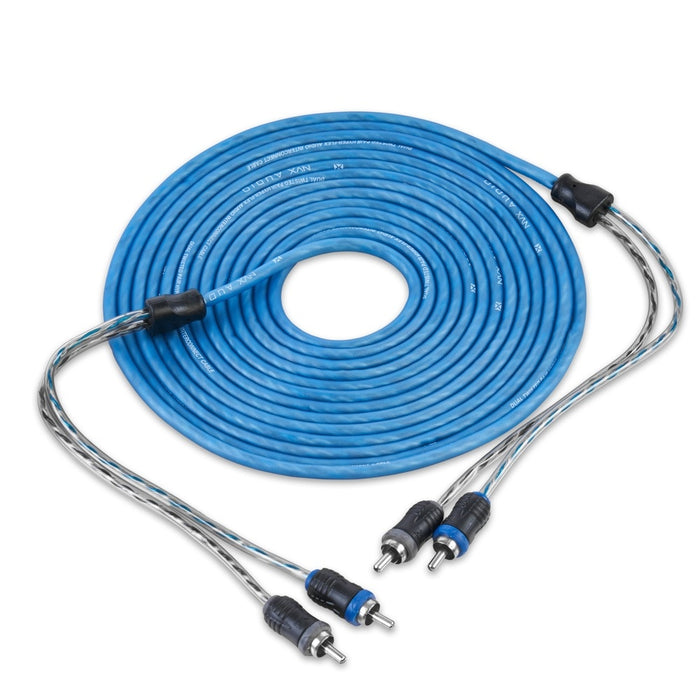

- V-Series RCA Interconnect Cable
- Shielded noise-rejecting coaxial construction provides protection against interference
- Split-tip silver-plated ends offer high-quality performance
- Molded ends equipped with colored channel identifiers for easy recognition
- Twisted-pair construction featuring two conductors per channel
- Includes an assortment of wire termination hardware and cable ties
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

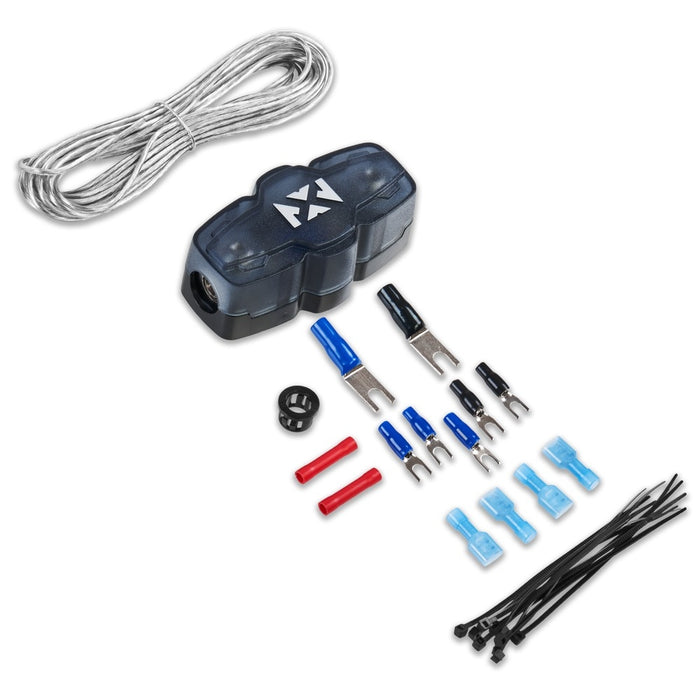

Kit includes:

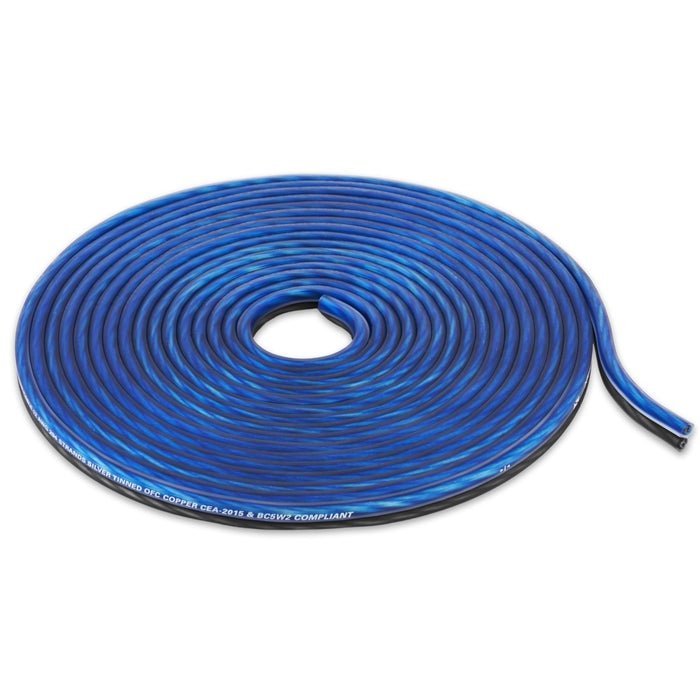

- 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
- 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
- 17 ft. Clear 18 gauge remote lead wire
- 20 ft. Frosted Black/Blue 16 gauge speaker wire
- One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
- One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
- One Black rubber firewall grommet
- Two 4 Gauge Nickel Plated spade terminals
- Four 18 Gauge Spade terminal
- Two 18 Gauge Red butt connectors
- Four 16 Gauge quick disconnect
- Five 16 Gauge Nickel Plated spade terminals
- Two Heat Shrink tubes with the NVX logo
- Ten 6" Black zip ties
