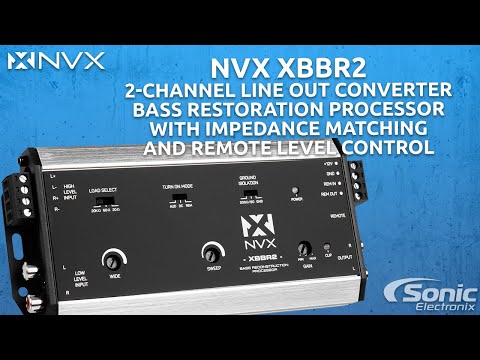

XBBR2 2-Channel Bass Restoration Processor and Line Output Converter with Impedance Matching and Remote Level Control

Product Details:

• Active 2-channel bass restoration processor and line output converter
• Designed to work with factory and aftermarket audio systems
• Speaker-level inputs handle up to 30V (225 watts RMS)
• Low-level RCA inputs handle 150 mV - 2 Volts
• RCA outputs provide up to 9.5 Volts of output
• Adjustable Parametric Bass Controls allow you to add bass that is missing due to the bass roll-off from factory car stereos
• Adjust center frequency and width of bass EQ processing
• Auto turn-on via DC offset or Audio Detection
• Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
• 12 Volt turn-on output for aftermarket amplifiers
• Selectable Ground Isolation switch to eliminate ground and alternator noise
• Molex terminals for speaker signal and power
• Wired remote bass level control included
• LED Clip indicator
• Total Harmonic Distortion: 0.005%
• Signal to Noise: >105 dB
• Frequency Response: 10-20,000 Hz
• 1-year Warranty from the Original Purchase Date
