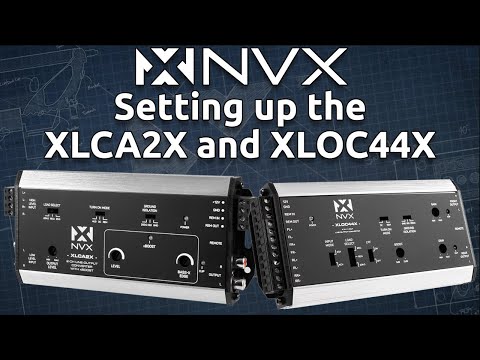

XLOC44X 4 inputs / 4 outputs High Voltage Active Line Output Converter with Impedance Matching and Remote Level Control

XLOC44X 4 inputs / 4 outputs High Voltage Active Line Output Converter with Impedance Matching and Remote Level Control

Sale Sale
$87.49
$87.49 - $87.49
$87.49
$68.99
$68.99 - $68.99
$68.99
Trust Badge 1
Trust Badge 2
Trust Badge 3
Trust Badge 4

Product Details:

  • Active line output converter and line driver
  • 4-channels of speaker-level inputs handle up to 40V (400 watts RMS)
  • 4-channels of RCA outputs provide up to 9.5 Volts of output
  • Designed to work with factory audio systems
  • Auto turn-on via DC offset or Audio Detection
  • Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
  • Adjustable 0 - 12dB  Bass Boost (Fixed at 45 Hz)
  • Selectable full range or low pass filter switch (LPF Rear channel only): 250Hz
  • Input selector switch for 2 or 4 channel modes
  • 12 Volt turn-on output for aftermarket amplifiers
  • Selectable Ground Isolation switch to eliminate ground and alternator noise
  • Molex terminals for speaker signal and power
  • Wired remote bass level control included
  • LED Clip indicator
  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >110 dB
  • Frequency Response: 10-20,000 Hz
  • 1-year Warranty from the Original Purchase Date

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Philip Jackson
Well played

Love this LOC. The ability to unplug the entire input bar is great. The gain adjustment is just perfect. The only thing that I didn't like is that the switches are slightly hard to manipulate because they are so recessed. Other than that this is just perfect.

M
Marko
Shock of Shocks! This did exactly what was needed in a 2020 Pacifica

I added a mono sub amp and a four channel main amp to my van. I tried Metra LOC's, to no avail. Then I tried Kicker LOC's, also a fail (they would actually send a high-level signal to the amps). Then I tried direct to the amps high inputs, also to no avail. Put this little box in place, switched the switches appropriately, and it sounds amazing! :) Less expensive than the bigger brands, but does the trick. No "bass restoration" which is fine, since you can't "put back" what you don't know what's missing. To me that's all mumbojumbo to begin with.

R
Randy James
Just what I needed for amp install on my Harley to get rid of popping!

Sounds great with Taramps 4 x 400 amp!~..

n
neal j gruca
Good

Good
