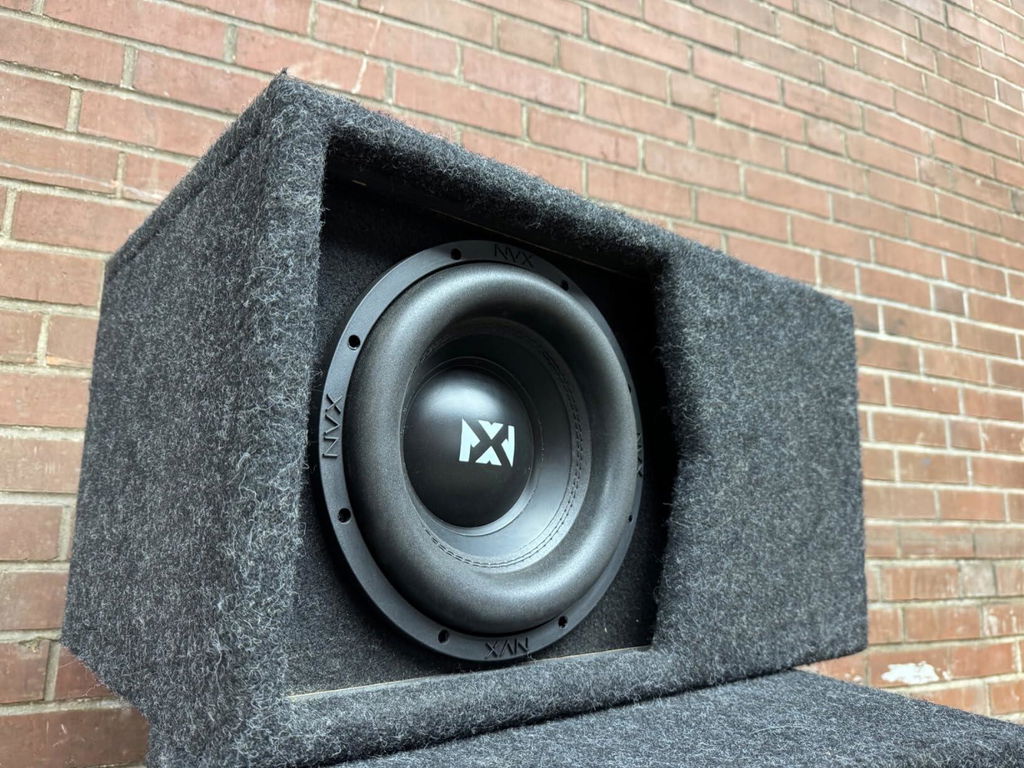

YSW104 1600W Peak (800W RMS) Y-Series 10" Dual 4-Ohm Subwoofer

Product Details:

• 10" Dual 4 ohms Y-Series Subwoofer
• Power Handling:
• Peak: 1600 watts
• RMS: 800 watts
• 15 mm Xmax
• Enhanced Pressed Paper Cone
• Custom High-Roll Foam Surround with Black Nylon Stitching
• Stamped Steel Vented Basket with NVX Punched Logo
• 3.0" High Temperature Copper Voice coil with Aluminum Former
• Progressive Roll Dual-layer Spider with Integrated Tinsel Leads
• Optimized High-Velocity Pole Vent
• 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 30.68 Hz
• Sensitivity: 85 dB
• Recommended sealed box volume: .45 cubic feet
• Recommended ported box volume: 1.5 cubic feet
• Top-mount depth: 5.90"
• Cutout diameter: 8.93"
• CTA-2031 Compliant
• 1-year Warranty from the Original Purchase Date
