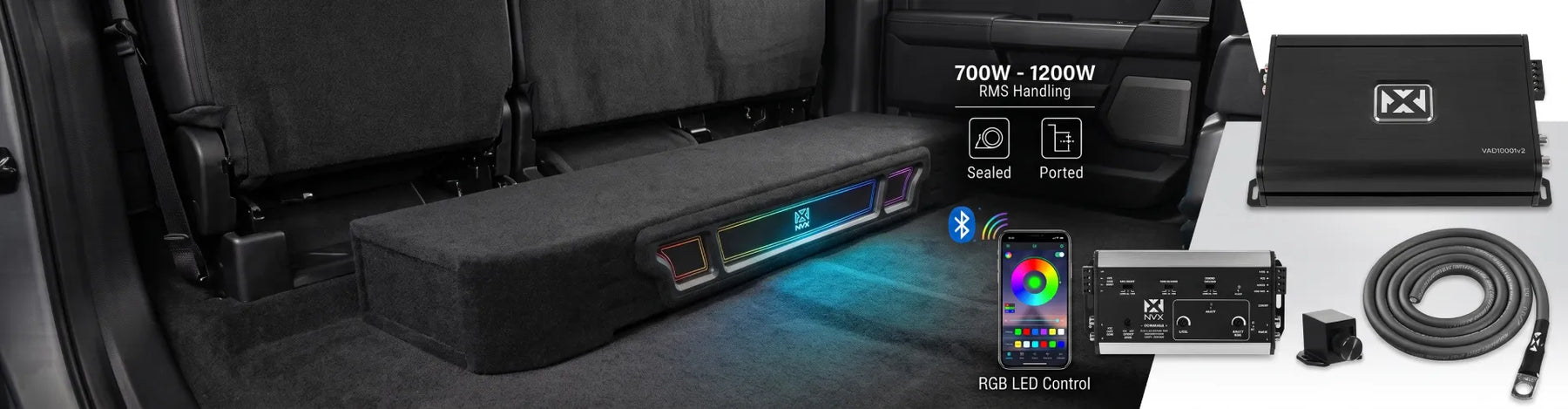

The Ultimate 2009-2026 Ford F-Series Subwoofer Enclosure & Bass Package Buyer’s Guide

The NVX 2009–2026 Ford F-Series under-seat subwoofer platform is custom-engineered specifically for 2009 to 2026 Ford F-150 SuperCrew and 2017 to 2026 Ford F-250, F-350, and F-450 Super Duty Crew Cab trucks.

If you want hard-hitting, chest-pounding bass in your truck without sacrificing valuable legroom, losing under-seat storage, or stopping your rear seats from folding flat, this platform is designed for you.

The NVX F-Series custom subwoofer enclosure is available as pre-loaded subwoofer boxes, or complete plug-and-play amplified bass packages. It’s also available in 10” and 12” variants.

Where Is the NVX Subwoofer Enclosure Installed in Your Ford Truck?

The NVX custom subwoofer enclosure installs directly underneath the rear passenger bench seat, sliding flat into the factory floor recess.

Its low-profile contour matches the floor pan geometry underneath the 60/40 split rear bench seat, allowing the rear seats to lift or lower without contacting the cabinet. The enclosure utilizes a down-firing layout, pointing the subwoofer cones directly down toward the carpeted floorboard metal.

Important Cab Fitment Warning: All enclosures in this lineup are engineered strictly for 2009–2026 Ford F-150 SuperCrew and 2017–2026 Ford F-250/F-350/F-450 Super Duty Crew Cab models featuring four full-size, independently opening rear doors.

They will NOT fit Regular Cab or SuperCab (Extended Cab with rear-hinged clamshell doors) models due to key structural differences in under-seat floor pan geometry and seat frame mounting points.

Why Are Custom Enclosures Better than Powered Enclosures?

A custom loaded or component subwoofer setup outperforms a regular powered subwoofer because it delivers up to six times the continuous power handling, vastly greater physical cone displacement, and dense 3/4-inch wood cabinet acoustics.

Many truck owners consider compact all-in-one "powered subwoofers" (thin plastic boxes with tiny built-in amplifiers) because they look easy to throw under a seat. However, powered under-seat units typically max out at 100W to 200W RMS and rely on single 8-inch or thin 10-inch drivers housed in lightweight plastic shells that flex and rattle when turned up.

• 700W to 1200W RMS Power Handling: While a plastic powered subwoofer will clip and distort as soon as you turn up the volume, but these NVX custom setups handle between 700W and 1200W RMS, effortlessly filling full-size F-150 and Super Duty cabs with clean, distortion-free sub-bass.
• Double the Cone Surface Area: Bass volume relies on physically moving air. Dual 10-inch or dual 12-inch subwoofers provide vast cone surface area compared to a single small powered sub driver, shifting massive volumes of air inside large truck interiors.
• Rigid 3/4" MDF Wood vs. Plastic Flex: Powered units utilize thin plastic housings that flex and vibrate under acoustic load. The NVX BOOST box uses heavy 3/4-inch medium-density fiberboard (MDF) to suppress cabinet flex, producing significantly punchier, cleaner sound.
• Modular Component Reliability: In an all-in-one powered sub, if the internal mini-amp burns out, the entire unit must be replaced. With a dedicated loaded enclosure or package, you pair the box with a high-power external Class-D monoblock amplifier, giving you far superior thermal management and simple future upgrade options.

How to Pick Between Driver Sizes and Enclosure Types

Choosing the right SKU for your truck comes down to three simple decisions: Driver Size, Enclosure Alignment, and Package Inclusion Level.

1. Driver Size: Dual 10-Inch vs. Dual 12-Inch

• Dual 10-Inch: This is a great all-round performance choice. Dual 10s feature lighter cone mass, allowing them to react faster to rapid musical transients. They deliver snappy, punchy kick drums for rock, country, pop, and metal while still outputting heavy sub-bass in a vented enclosure.
• Dual 12-Inch: This is a beast for maximum output. Dual 12s feature larger cone surface area, moving significantly more physical air. If you listen primarily to hip-hop, R&B, EDM, or bass-heavy tracks and want maximum cabin pressure and mirror-shaking sub-bass, dual 12s are the way to go.

2. Enclosure Alignment: Sealed vs. Vented (Ported)

• Sealed Enclosures: Traps internal air inside the cabinet to act as a pneumatic spring behind the woofers. This keeps speaker movement under strict mechanical control, yielding tight, fast, and analytical bass response without boomy resonance.
• Vented (Ported) Enclosures: Utilizes a tuned internal air port to reinforce low-frequency output near its resonant frequency. A vented box delivers up to 3dB to 6dB of additional output over a sealed box at the tuning frequency, producing deeper sub-bass extension (down to 25 Hz) that easily overcomes the large interior air volume of Ford truck cabs.

3. Option Level: Empty Box vs. Loaded Box vs. Complete Bass Package

• Empty Enclosure (UBE Series): Includes the custom-molded 3/4" MDF under-seat box with RGB LED lighting, terminal cups, and internal wiring. Ideal if you already own shallow-mount 10-inch or 12-inch subwoofers.
• Loaded Enclosure (BE Series): Comes factory pre-loaded with NVX S-Series shallow-mount subwoofers pre-wired to a 1-ohm final mono load. Ready to connect to an external monoblock amplifier.
• Complete Bass Package (PBK Series): The ultimate all-in-one solution. Includes the pre-loaded enclosure, an NVX 1200W RMS Class-D Monoblock Amplifier, an NVX XLCA2X Active Line-Output Converter (for factory radio integration), a wired remote bass knob, and a 100% pure oxygen-free copper (OFC) 4-gauge wiring kit.

Comparing Enclosure Configurations

App-Controlled RGB LED Lighting & Custom Cabinet Build

The integrated RGB LED lighting system operates via a Bluetooth smartphone app, illuminating an etched acrylic logo panel across 180 dynamic color-changing modes and real-time music synchronization.

Embedded into the front baffle of each enclosure is a custom-etched acrylic window featuring the NVX logo. RGB LED light strips mounted behind the acrylic cast a bright, customizable glow across your truck's rear floorboard.

Using a downloadable iOS or Android Bluetooth app on your smartphone, you can control the lighting without running physical switches to your dashboard:

• 180 Dynamic Color Modes: Select solid static colors, chasing patterns, smooth fading gradients, or strobe effects to match your Ford's ambient interior lighting.
• Music Sync Mode: Uses your smartphone's microphone or internal audio stream to pulse and change light colors to the beat of your music in real time.

The cabinet itself is constructed from 3/4-inch medium-density fiberboard (MDF) cut on precision CNC routers to prevent acoustic leaks. The exterior is wrapped in plush automotive carpet matched to Ford interior trim and detailed with a custom vinyl accent insert.

Recommended Components

100% Pure OFC 4-Gauge Wiring

Sustaining an 800W to 1200W RMS electrical load forces your amplifier to pull continuous current from your charging system. Installers must run a 100% pure oxygen-free copper (OFC) 4-gauge amplifier wiring kit (such as the NVX XKIT42) equipped with an inline fuse holder directly from the battery post. Copper-clad aluminum (CCA) wire kits create excessive electrical resistance, resulting in severe voltage drops and triggering protection modes on high-output Class-D amplifiers.

Overcome Ford SYNC Factory Bass Roll-Off

Factory Ford SYNC receiver head units utilize internal equalization software that automatically reduces low-frequency bass output as you raise the main volume knob past 50%. This factory roll-off protects weak stock door speakers, but it starves aftermarket subwoofers of low-end signal.

To resolve this, all complete NVX bass packages include (or recommend pairing loaded boxes with) an active line-output converter like the NVX XLCA2X. It taps into your factory Ford speaker lines, converts high-level speaker signals into clean low-level RCA outputs, and uses integrated xBOOST technology to restore lost bass frequencies (30 Hz–60 Hz), supplying your monoblock amplifier with a flat, distortion-free audio signal at all volume levels.

Recommended Amplification for Standalone Boxes

If you are purchasing a loaded enclosure (BE Series) without an included amplifier, pair it with a 1-ohm stable Class-D monoblock amplifier capable of supplying clean power into a 1-ohm mono load:

• NVX VAD10001v2: Delivering up to 1000W RMS at 1 ohm, this amplifier provides clean, unclipped power with ideal headroom to drive 700W–800W RMS loaded enclosures without overheating. Its compact chassis easily mounts underneath the front driver or passenger seat.
