The Ultimate Kia Optima Subwoofer Enclosure and Custom Bass Package Buyer's Guide

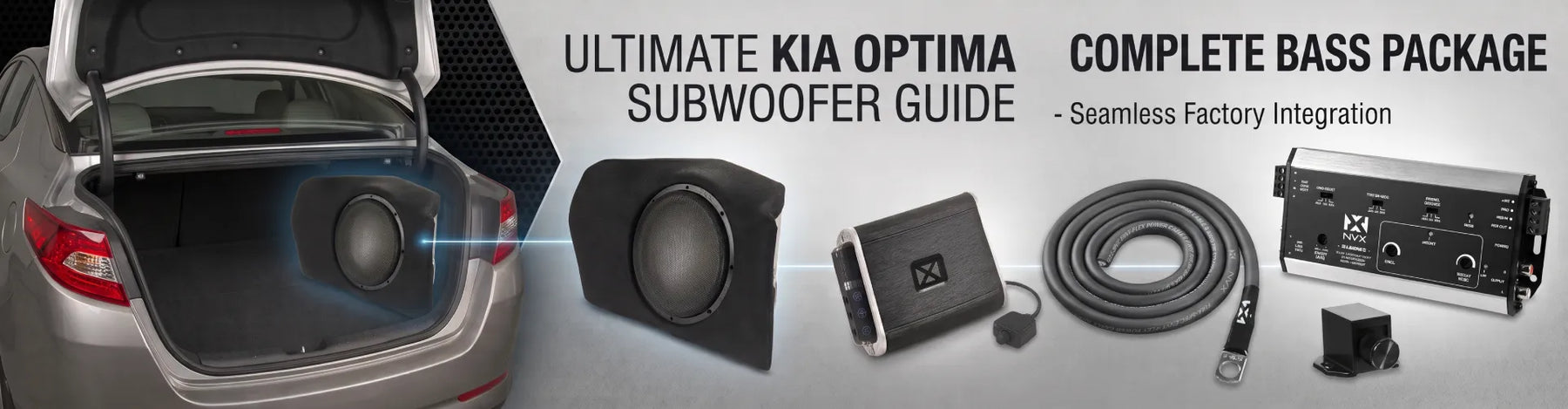

The NVX PBK-KIAOPTG3-VSW102 is a complete 500W RMS bass system engineered specifically for 2011 to 2015 Kia Optima sedans.

If you want to add deep, hard-hitting bass to your car without giving up usable cargo space or losing your folding rear seat functionality, this package delivers everything you need in one box. It slides directly into the unused cavity in your driver-side trunk corner for a seamless, factory-like installation. This all-in-one package includes:

• A custom-contoured hand-laid fiberglass sealed BOOST enclosure
• A pre-loaded NVX VSW 10-Inch 500W RMS Subwoofer with a protective steel grille
• An NVX VADM1 Micro Class-D Monoblock Amplifier with a wired remote bass knob
• An NVX XLCA2 2-Channel Active Line-Output Converter with xBOOST bass restoration
• An NVX XKIT82 8-Gauge 100% Oxygen-Free Copper (OFC) Complete Wiring Kit

Can You Purchase Just the Loaded Enclosure for the Third-Generation Kia Optima?

Yes! The NVX makes a Custom Fit 500W RMS Single 10" Loaded BOOST Sealed Enclosure for the 2011-2015 Kia Optima. The loaded enclosure package comes with the:

• Hand laid fiberglass BOOST enclosure
• NVX VSW 10-Inch 500W RMS Subwoofer
• A protective steel grille
• Matching carpeting that covers the enclosure.

Why Choose a Custom Corner Bass Package for Your Kia Optima?

Adding a subwoofer to a midsize sedan like the Kia Optima usually means dropping a large, bulky box right in the middle of your trunk floor. That forces you to choose between great audio performance and actual trunk utility. However, NVX’s custom BOOST enclosure allows you to have:

• Zero Footprint Loss: The custom BOOST enclosure utilizes the empty dead space behind the driver-side wheel arch. The entire main floor of your trunk stays wide open for luggage, groceries, or gear.
• Factory-Matched Interior: Wrapped in carpet designed to match the Kia Optima's original trunk lining and equipped with a heavy-duty steel grille, it looks like an OEM option installed by the dealership rather than an aftermarket compromise.
• Natural Corner Loading: Positioning the subwoofer in the rear corner forces the sound waves to reflect off the trunk walls and rear deck lid. This boundary effect increases bass output inside the cabin without needing a larger, power-hungry box or extra amplifier wattage.

Is the PBK-KIAOPTG3-VSW102 Compatible with Kia Optima Hybrid Trims?

Yes, the NVX PBK-KIAOPTG3-VSW102 is fully compatible with both standard 2.4L/2.0T gasoline Optima models and Kia Optima Hybrid trims.

Hybrid vehicles do not use a standard belt-driven alternator to supply 12V accessory power. Instead, a solid-state DC-to-DC converter steps down power from the high-voltage hybrid battery pack to maintain the vehicle's low-voltage electrical network. The included NVX VADM1 monoblock operates at a minimal current draw and allows the audio system to run safely within the output parameters of the Optima Hybrid's DC-to-DC converter.

System Components and Technical Specifications

Every piece of hardware in this complete bundle is acoustically matched to optimize power transfer, electrical safety, and mechanical performance within the 3rd-generation Kia Optima platform.

Enclosure Architecture & Driver Mechanics

The rear shell of the enclosure is constructed from dense, hand-laid fiberglass to match the inner metal curves of the driver-side quarter panel. The front baffle is cut from 3/4-inch medium-density fiberboard (MDF), ensuring a rigid mounting surface that suppresses enclosure panel flex under high pneumatic pressure. The loaded VSW 10-inch subwoofer features a non-pressed paper cone, a high-roll foam surround with dual nylon cross-stitching, and a 2.5-inch high-temperature copper voice coil wound on an aluminum former for maximum thermal capacity under long listening sessions.

Micro Class-D Amplification

The VADM1 monoblock amplifier delivers up to 500W RMS into a stable 2-ohm load while maintaining an ultra-compact chassis footprint measuring less than 7 inches wide. Its conformal-coated circuit board protects internal electronics against cabin temperature spikes and humidity, making it easy to tuck under a front seat or inside the spare tire cavity.

How Does the Included Line Output Converter Prevent Factory Bass Roll-Off?

The included NVX XLCA2 active line output converter prevents factory bass roll-off by analyzing incoming high-level speaker signals and dynamically applying xBOOST signal restoration.

Stock Kia Optima factory head units use built-in equalizers that automatically reduce low-frequency bass output as you increase the volume knob. This OEM audio protection prevents cheap factory door speakers from blowing out, but it leaves aftermarket subwoofers sounding weak, flat, and thin at higher listening levels.

The XLCA2 taps directly into your factory speaker lines, converts high-voltage speaker signals into clean low-level RCA pre-amp signals, and uses integrated xBOOST technology. xBOOST counteracts the factory radio's equalization curve by restoring lost sub-bass frequencies between 30 Hz and 60 Hz. This yields a flat, linear audio signal with full bass impact across the entire volume range.

Step-by-Step Installation Procedure for 2011-2015 Kia Optima

Step 1: Trunk Area Preparation and Enclosure Placement

Clear out the cargo area and pull up the main carpet floor mat. Remove the plastic retaining clips holding the felt trunk liner against the driver-side rear quarter panel. Position the custom fiberglass BOOST box into the side alcove behind the wheel arch, verifying that the back shell sits flush against the inner body panel. Anchor the included mounting brackets to factory chassis bolt locations.

Step 2: OFC Power and Ground Infrastructure

Route the 8-gauge pure oxygen-free copper power cable from the battery positive post under the hood through the main rubber firewall grommet on the driver side. Run the cable underneath the plastic floor sill threshold covers all the way back to the trunk. Mount the main inline fuse holder within 18 inches of the battery post. Connect the ground wire to an unpainted factory chassis bolt inside the trunk cavity, removing paint to reveal bare metal.

Step 3: High-Level Signal Integration

Access the factory rear deck speaker harness located beneath the rear parcel shelf in the trunk. Tap the left and right positive and negative speaker leads into the high-level inputs on the NVX XLCA2 converter. Wire 12V constant power and ground to the XLCA2, then run its 12V remote turn-on output wire directly to the remote terminal of the VADM1 amplifier.

Step 4: Amplifier Mounting and Audio Connections

Place the VADM1 monoblock amplifier in the spare tire well or adjacent to the enclosure. Run short, shielded RCA interconnects from the XLCA2 outputs to the amplifier inputs. Connect the 8-gauge power and ground wires to the amp terminals, and run 14-gauge speaker wire from the amplifier output to the enclosure terminal cup. Route the wired remote bass knob forward through the center console, mounting it within easy reach below the steering column.

Step 5: System Tuning and Multimeter Calibration

Set the factory Kia radio volume to 75% while playing a 50Hz 0db test tone (download it and play it through a thumb drive plugged into the factory USB). Adjust the XLCA2 xBOOST dial until the low-frequency response is level and restored. Using a digital multimeter, adjust the VADM1 gain control to match the target output voltage for a 2-ohm load (approx. 31.6V). Set the low-pass filter (LPF) on the amplifier to 80 Hz to integrate with the factory mid-range speakers, and set the subsonic filter to 25 Hz to eliminate ultra-low mechanical over-excursion.
