VADM4 v2 (VADM4v2) 500W RMS V-Series Micro Full-Range Class D 4-Channel Amplifier (Marine Certified)

VADM4 v2 (VADM4v2) 500W RMS V-Series Micro Full-Range Class D 4-Channel Amplifier (Marine Certified)

$227.99
$227.99 - $227.99
$227.99
$199.99
$199.99 - $199.99
$199.99
Available Models:
Trust Badge 1
Trust Badge 2
Trust Badge 3
Trust Badge 4

 Product Details:

  • V-Series Micro Class D 2 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 80 watts x 4 channel
    • 2 ohms: 125 watts x 4 channel
    • Bridged: 250 watts x 2 channel @ 4 ohms
  • Total power output: 500 watts
  • Conformal Coated Marine grade circuitboard
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • 4-way protection circuitry (thermal, overload, speaker short and DC offset)
  • Balanced differential inputs eliminate noise picked up by signal cables
  • 2 or 4 channel selectable input mode
  • Selectable crossover modes: FULL / HPF / LPF
  • Crossover Slope: 12dB/octave
  • Input sensitivity:
    • Low level and High level: 0.2 - 10 volts
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ratio: 96 dB
  • Variable high-pass filter: 40 - 400 Hz
  • Variable low-pass filter: 40 - 400 Hz
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 6.49" L x 3.3" W x 1.48" H
  • 1-year Warranty from the Original Purchase Date
  • MFR #: VADM4v2

 VADMv2 owner’s manual

Customer Reviews

Based on 63 reviews
90%
(57)
10%
(6)
0%
(0)
0%
(0)
0%
(0)
100.0
J
Jay P
Perfect Fit Micro Amp Upgrade for Escalade Center Console

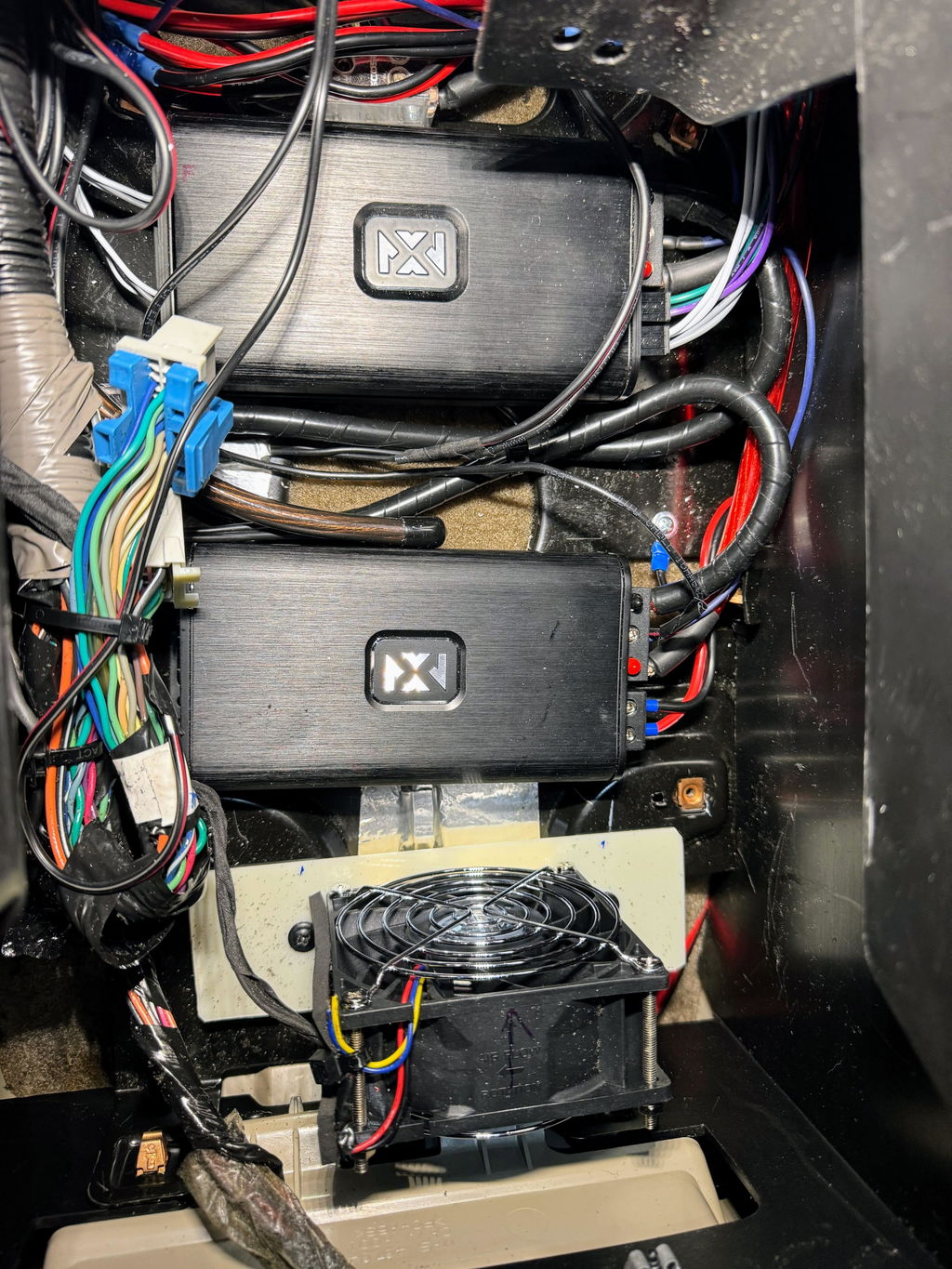

I installed the VADM4v2 500W RMS V-Series Micro amplifier as a replacement for the factory Bose amp in my 2006 Escalade, and it fit perfectly in the original location inside the center console. The compact size and flexible mounting made the install straightforward, which was one of the main reasons I chose this model.

Performance has been solid so far. It delivers clean output and plenty of power for a full-range setup. The amp does get warm at higher listening levels, but that is expected with a small Class D amplifier in an enclosed space, and it has not caused any issues during use.

Overall, I’m very happy with the upgrade. If you need a compact, adaptable amplifier for a tight OEM-style install, I would definitely recommend it.

User picture
B
Brian
Great little amp works

Great little amp works perfectly

D
Daniel

Awesome little amp

B
Blake
Bang for buck

Second one I've purchased, Works great, powerful clean little amp

D
Daniel Butler
Powerful AMP for it's physical size.

The size of this amp makes it ideal for confined spaces. I could put 4 of these in my fairing if I needed to and still have lots of space left.
Installed in a 2015 Road Glide.

Performance wise this little thing is awesome! I'm able to get the volume I need without distortion at a much lower setting on the head unit.
Get one! Or two, three maybe?
