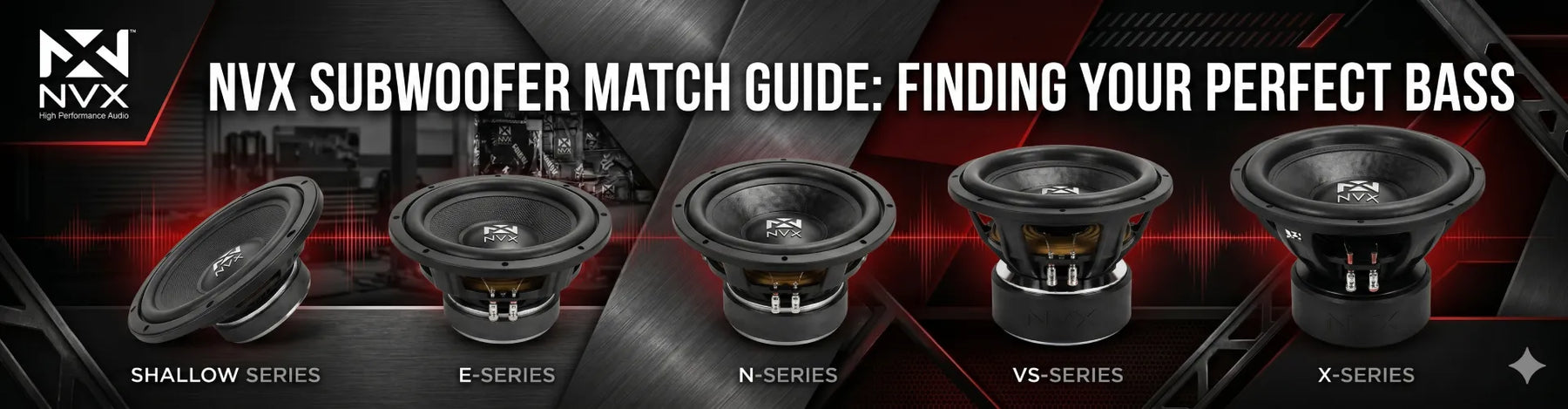

NVX Subwoofer Match Guide: Choosing Between E, N, VS, VC, X, Y, and Shallow Series

The difference between NVX subwoofer series comes down to power handling, enclosure flexibility, output capability, and space constraints. Each line is engineered for specific targets and has trade-offs in cone materials, motor structure, and cooling strategy. Choosing the right NVX subwoofer depends on how much power you plan to run, how much space you have for an enclosure, and whether your priority is a simple factory replacement or high-intensity sound pressure level (SPL) output.

• E-Series: Simple, budget-focused single-voice-coil models for factory upgrades (200–250W RMS).
• N-Series v3: The entry into dual-voice-coil flexibility and higher daily power (400–500W RMS).
• VS-Series v3: Balanced efficiency and motor control for high-quality daily bass (600W RMS).
• Y-Series: Precision sound-quality (SQ) performance with consistent power across sizes (800W RMS).
• VC-Series v3: The high-power daily "workhorse" with 3-inch voice coils (1000–1200W RMS).
• X-Series: The SPL flagship designed for extreme excursion and raw output (2000W RMS).
• NSW Shallow Series: Compact design for tight spaces like under-seat truck installs (350W RMS).

E-Series: The Entry Point for Simple Upgrades

The E-Series is designed for listeners who want to add a missing low-end to a vehicle without committing to a complex installation or expensive hardware. Unlike the rest of the lineup, these drivers typically use a single 4-ohm voice coil. This simplifies the wiring process because it provides a straightforward load for a modest mono amplifier, removing the need for series or parallel wiring calculations.

These subwoofers are built for efficiency rather than high thermal power handling. They feature enhanced pressed paper cones and 1.5-inch voice coils that respond well to small, low-wattage amplifiers. It’s the most cost-effective way to restore bass that a factory system lacks without demanding significant cargo space.

• Series Intent: Simplified subwoofer upgrades for beginners.
• Performance: High efficiency on low power with straightforward single-coil wiring.

N-Series v3: The Aftermarket Gateway

The N-Series v3 represents the transition from a basic speaker replacement to a true aftermarket subwoofer platform. The primary technical shift here is the move to dual voice coils (DVC). This allows you to wire the subwoofer to different impedance loads, such as 2 ohms or 4 ohms, to maximize the output of your specific amplifier.

Mechanically, the N-Series is a significant step up from the E-Series. It uses a 2-inch high-temperature copper voice coil and double-stacked ferrite motors. This hardware allows it to handle 400–500 watts of root mean square (RMS) power, giving it much more durability for daily listening. It’s the intended choice for builds where you want real aftermarket presence but aren't yet chasing extreme output levels.

• Series Intent: Value-focused daily bass with aftermarket wiring flexibility.
• Performance: Increased punch and thermal headroom compared to entry-level drivers.

VS-Series v3: Balanced Efficiency and Clarity

The VS-Series v3 is the most versatile driver in the lineup for daily-driver systems. Rated at 600W RMS, it strikes a balance between being efficient enough to play loud on moderate power and robust enough to handle high-volume sessions.

The standout feature of the VS-Series is the inclusion of an aluminum shorting ring within the motor structure. This component reduces the inductance of the voice coil, which minimizes distortion as the cone moves. This results in bass that’s cleaner and more accurate than entry-level models, even at the edge of its 13.5 mm linear excursion. It’s the logical choice for builders who want authoritative bass that stays musical across various genres.

• Series Intent: High-quality daily bass that prioritizes low distortion.
• Performance: Clean, musical output with excellent motor control.

Y-Series: The Sound-Quality Specialist

The Y-Series is engineered specifically for sound-quality (SQ) builds. Its most unique characteristic is consistency; every model-whether it's a 10, 12, or 15-inch—is rated at 800W RMS. This allows you to choose your subwoofer size based on your vehicle's available enclosure space or your desired frequency extension without needing to rethink your amplifier choice.

Y-Series subwoofers focus on thermal stability and accurate transient response. They're designed to stay composed and "shaped" as the volume increases, avoiding the boomy or loose sound often found in high-output drivers. If you want a system where the bass blends seamlessly with high-end door speakers and reproduces complex bass lines with precision, the Y-Series is the dedicated platform.

• Series Intent: Premium high-fidelity bass with high thermal stability.
• Performance: Accurate, textured reproduction that remains composed under load.

VC-Series v3: The High-Power Daily Workhorse

The VC-Series is built for systems that bridge the gap between daily listening and high-output competition. It moves into the 1000–1200W RMS class, requiring a much larger 3-inch, 4-layer aluminum voice coil to manage the heat of high-current amplifiers.

The VC-Series features a die-cast aluminum basket and a significantly stiffer suspension than the VS line. This mechanical rigidity allows it to handle sustained high-wattage loads without losing control of the cone. If you have a high-output amplifier and your goal is physical impact that you can feel in your chest, the VC-Series provides the necessary durability to stay loud for long durations.

• Series Intent: High-output daily systems focused on authority and durability.
• Performance: Heavy-hitting, physical bass with massive thermal headroom.

X-Series: The SPL Flagship

The X-Series is the flagship platform for SPL builds. These are massive drivers designed for sheer air movement and raw output. Rated at 2000W RMS, they feature triple-stacked ferrite motors and heavy-duty high-roll surrounds that are stitched directly to the cone for maximum reliability.

An X-Series build is an "electrical-first" project. These subwoofers demand significant current, which typically requires a high-output alternator or secondary batteries to prevent voltage sag. They’re engineered to live in large, ported enclosures where they can produce extreme low-frequency extension. If your priority is moving as much air as possible and you’re prepared to support the power requirements, the X-Series is the top-tier choice.

• Series Intent: Extreme output and competition-level sound pressure.
• Performance: Maximum air movement and durability under extreme power loads.

NSW Shallow Series: The Space Problem Solver

When a vehicle's architecture prevents the use of a full-depth subwoofer-such as in a regular-cab truck or under the seat of an SUV-the Shallow Series is the engineering solution. These subwoofers use a modified motor structure that reduces mounting depth to just a few inches.

Rated at 350W RMS, they utilize a stiffer suspension to compensate for the small air volumes found in shallow enclosures. While they don’t offer the same deep-frequency extension as a full-depth VC or X-Series driver, they provide a significant upgrade over factory sound in cabins that otherwise couldn't house a subwoofer system.

• Series Intent: Solving space constraints in trucks and compact SUVs.
• Performance: Reliable low-end presence in restricted-depth environments.

Matching the Driver to Your System Goals

Finalizing your choice requires balancing your amplifier's output with your vehicle's physical limits. If you have a 500W amplifier and a standard trunk, the N-Series or VS-Series provides the most efficient path. If you're building a 1200W system and want high-output durability, the VC-Series is the correct match.

Always verify your mounting depth and enclosure volume before choosing a series. An X-Series sub is powerful, but it'll fail to perform correctly if forced into an undersized box. By matching the mechanical strengths of the driver to your vehicle’s constraints, you’ll ensure the system remains reliable and performs exactly as intended.
